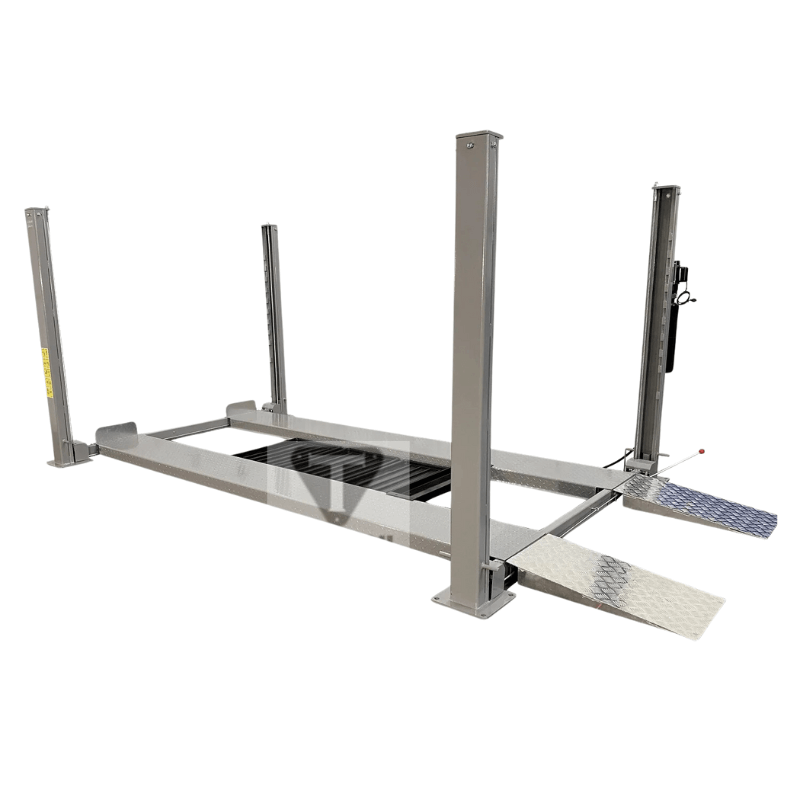

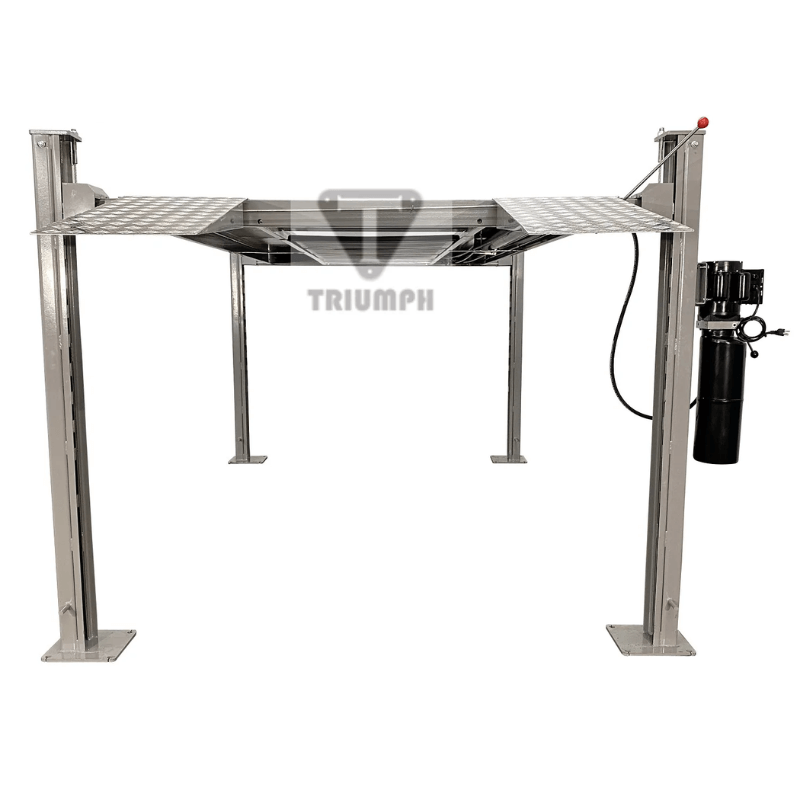

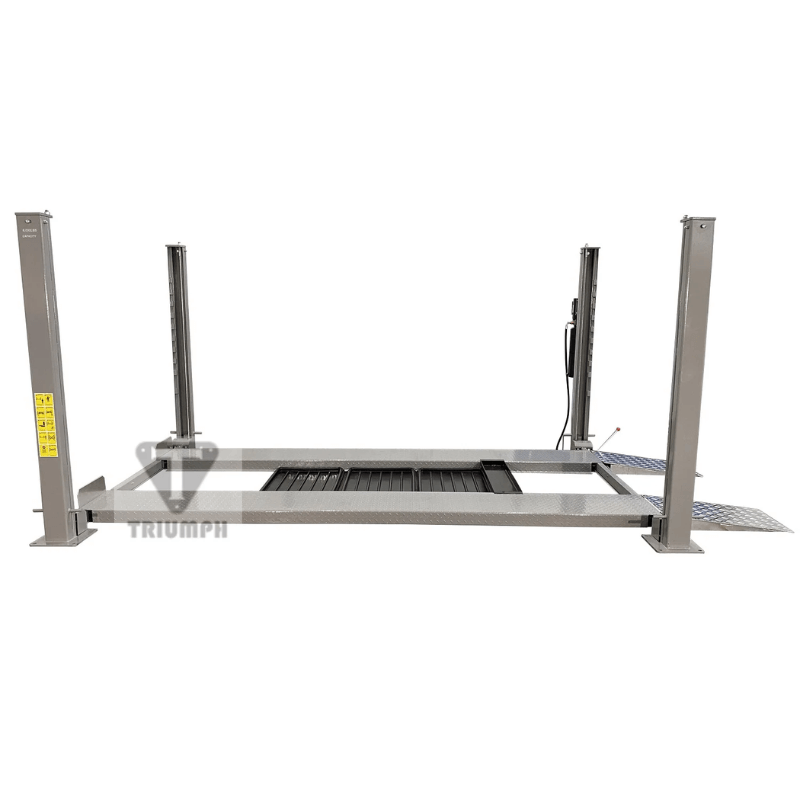

Triumph NSS-8SQ, Classic 8,000lb Vehicle Storage Lift – Shorter Length

NSS-8SQ Vehicle Storage Lift by Triumph

There are parking lifts. Then there’s the Triumph NSS-8SQ Classic Lift. This 8,000 lb capacity behemoth is a garage game-changer that would make even Ferdinand Porsche nod in approval. With a runway that’s practically a drag strip at 165″ and a width between posts wider than a Hummer’s grin at 94″, it’s ready to cradle everything from nimble roadsters to burly trucks.

But don’t let its muscle fool you – this four-post marvel moves with the grace of a ballet dancer on a street dance competition. Its portable design and caster kit let you choreograph your garage space like a pit crew chief. Add in the jack tray for precision lifts and three drip trays to keep things cleaner than a Concours d’Elegance show car, and you’ve got more versatility than a Swiss Army knife. With 10 locking positions engaging faster than a drag racer’s reflexes and a lift height that rivals a monster truck’s suspension, the Classic Lift isn’t just raising cars – it’s elevating your entire garage experience to pole position.

Triumph Classic Lift Specifications:

• Lifting Capacity: 8,000 lbs

• Overall Height: 84 inches

• Runway Length: 132 inches (without ramps)

• Overall Length: 141 inches (2.5 ft shorter than NSS-8)

• Overall Width: 106 inches (base plate to base plate)

• Lifting Height: 72 inches

• Height Under Runway: 69 inches

• Drive-Through Width: 93 inches

• Runway Width: 18 inches

• Between Runways: 37 inches

• Locking Positions: 10 (every 4.5 inches)

• Lowest Lock Position: 26 inches

• Highest Lock Position: 69.5 inches

• Lock Release: Single-point

• Lifting Time: 40 seconds

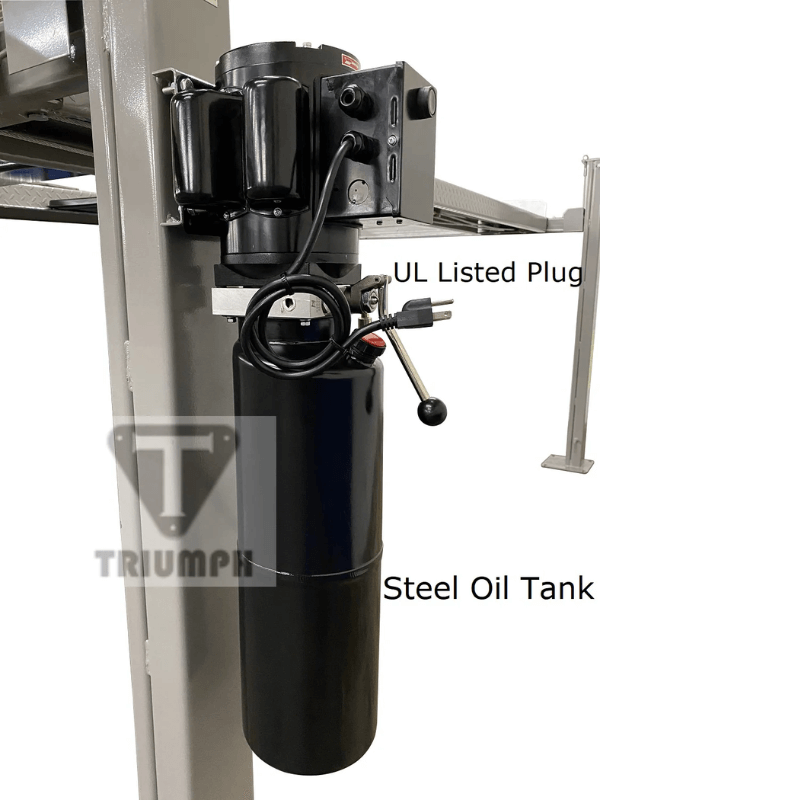

• Motor: 110V / 30 Amp / 3 HP

• Shipping Weight: 1,600 lbs

• Pallet Dimensions: 136″ x 21″ x 29″

NSS-8SQ 8,000 Vehicle Storage Lift Special Features:

• Often referred to as “The Classic”

• Four-post design for enhanced stability and vehicle storage

• Drive-on ramps for easy vehicle positioning

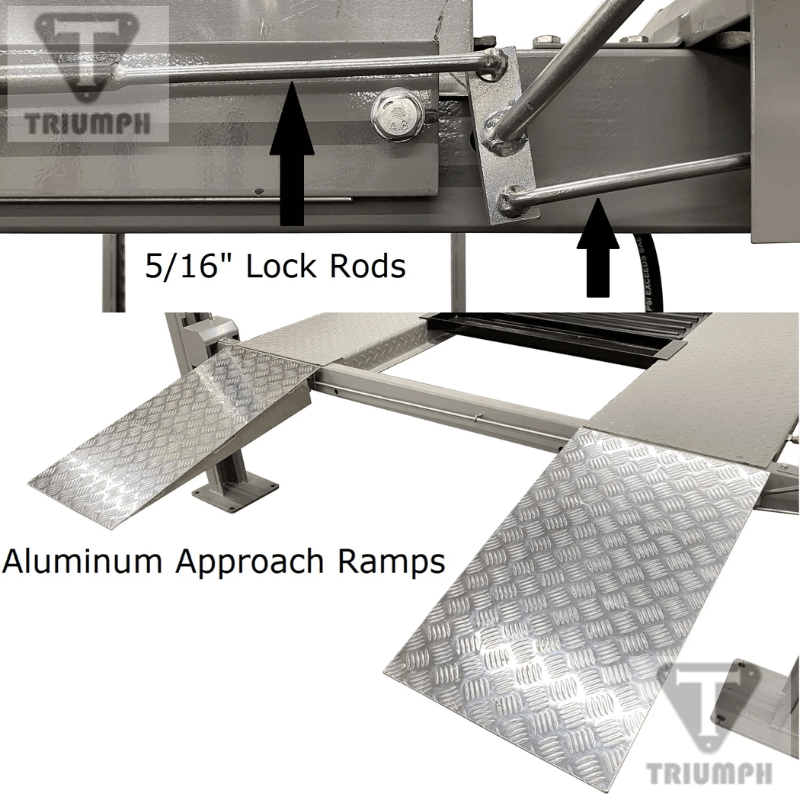

• Aluminum ramps for durability and lightweight handling

• Automatic safety locks for secure lifting

• Includes:

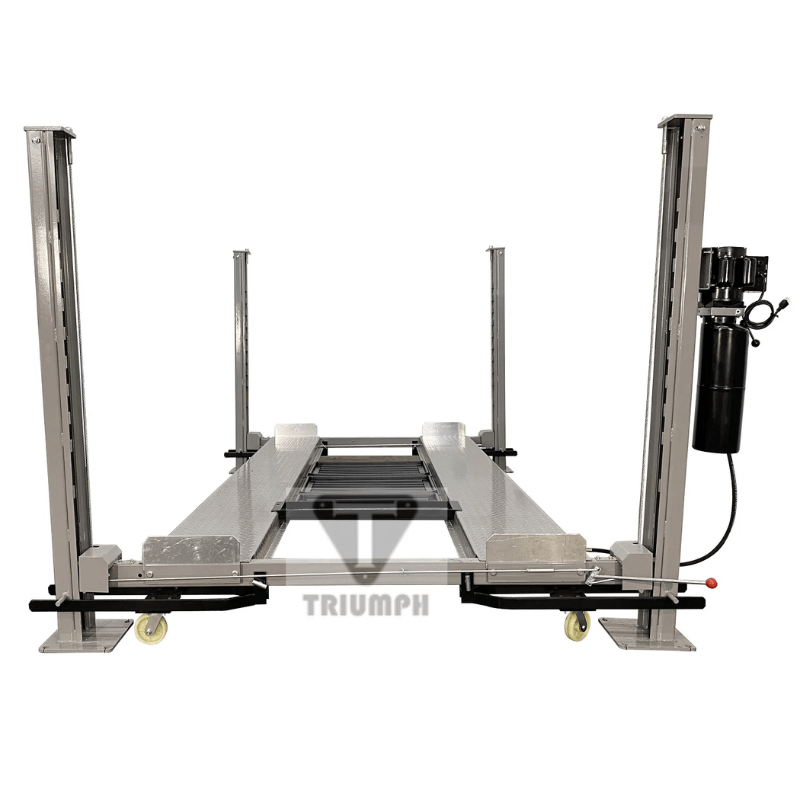

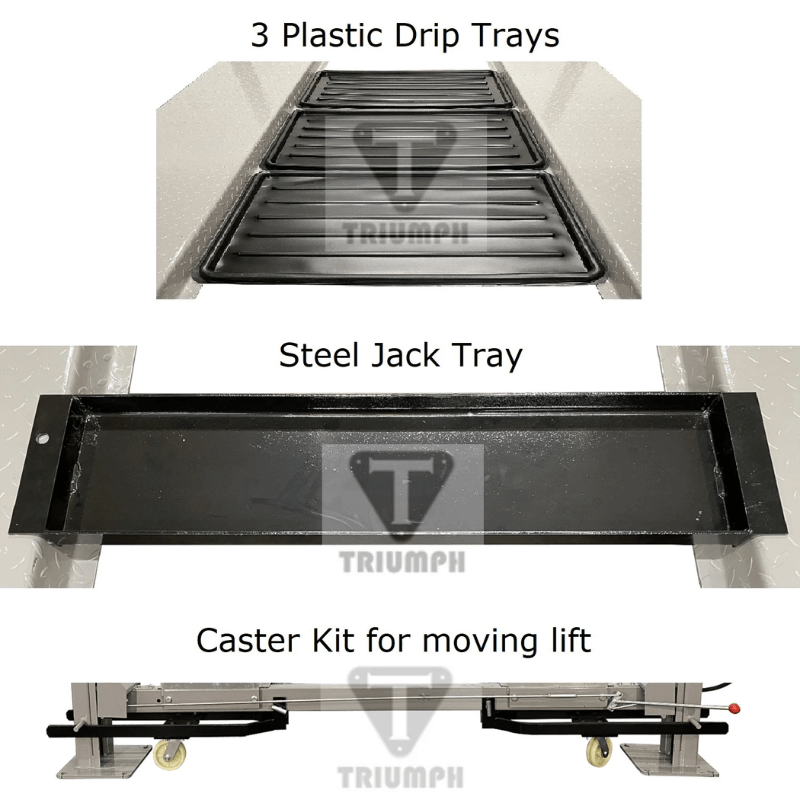

  • Caster kit for easy mobility and placement

  • Drip trays to prevent fluid mess

  • Jack tray for additional lifting flexibility

• Warranty: 1-year parts-only

• Certification: CE Certified and built in factories with ISO9001 Quality Certification
• Optional Item (Sold Separate)
  • Triumph NSS-8 Storage Lift Bridge Jack SJ35

NSS-8SQ Manual

  Triumph NSS-8SQ Manual

 Triumph NSS-8SQ Cable Routing
