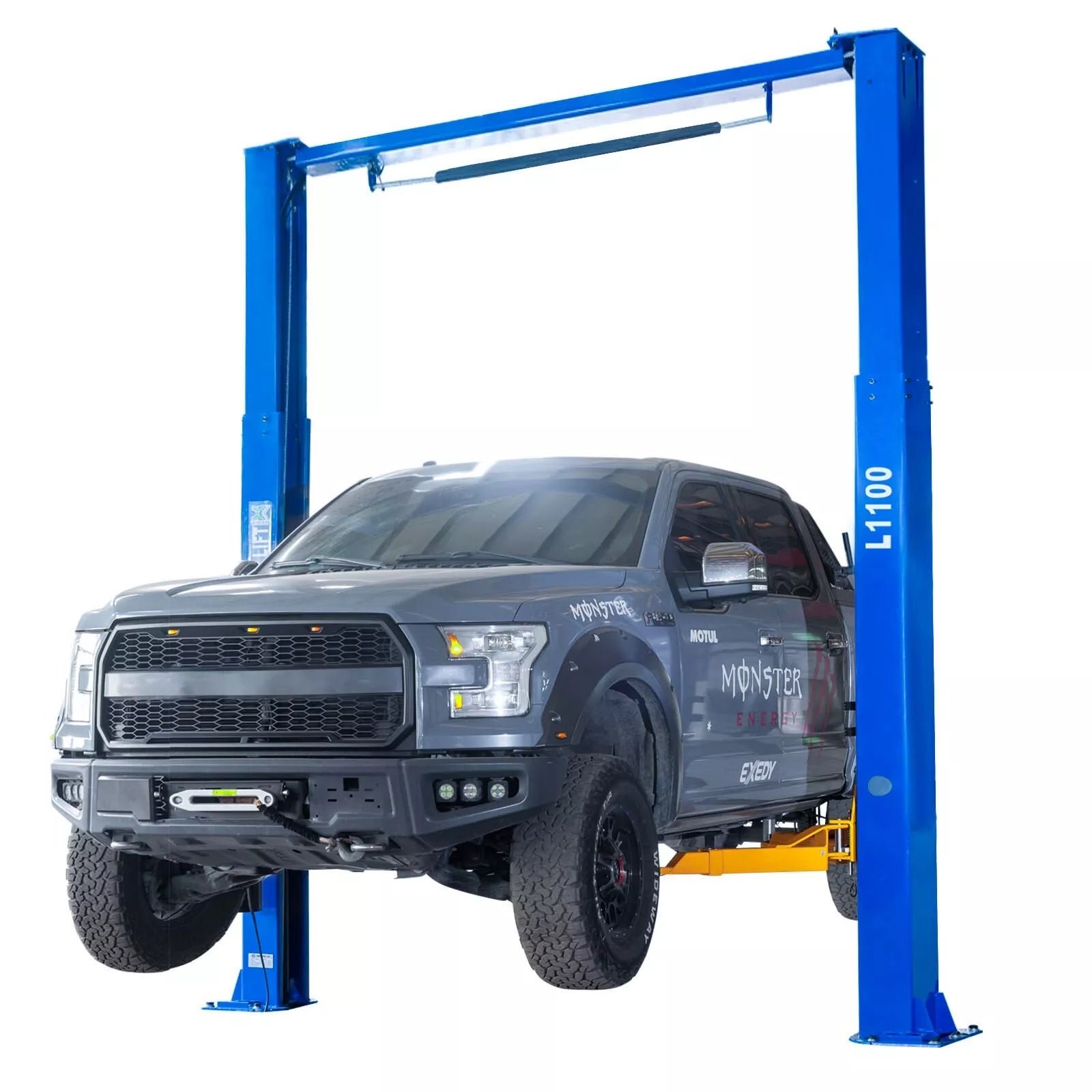

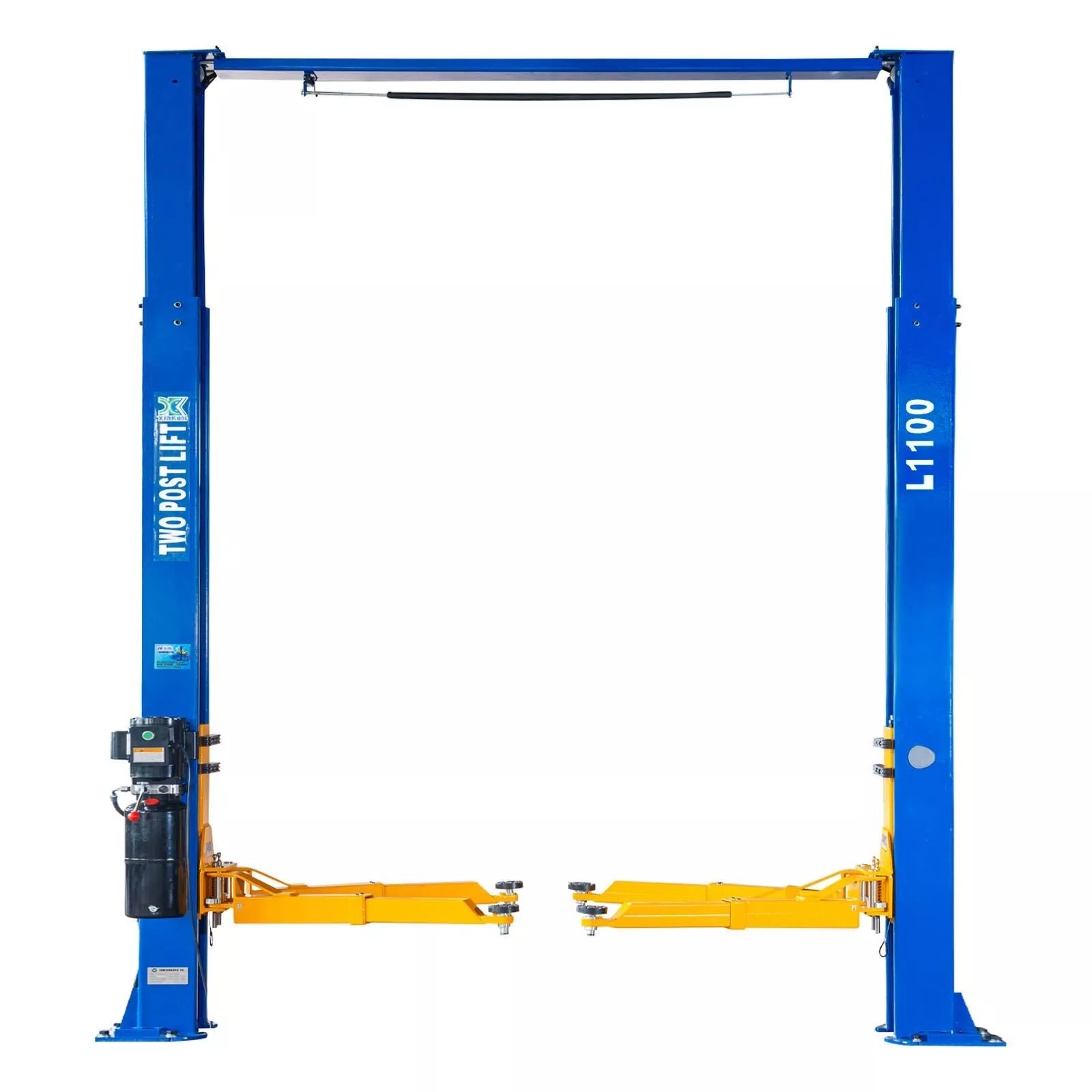

10,000lbs Car Lift L1100 – 2 Post Lift (220V)

✅ Important: Use the overhead bar to measure the space between the two posts.

🛠 Warranty

We offer a 1-year warranty on all metal parts, pneumatic components, electrical parts, and motors! When you choose us, you get the best warranty on eBay.

Most sellers offer little to no warranty or only cover parts for 3-6 months (or 1 year at most). Compare before making your decision! Visit our store for full terms and conditions—we provide the best warranty!

Factory Defective Items

✅ Full refund for defective items.
✅ If a replacement is requested, we cover the shipping cost for the replacement.

Auto Car Lift L1100 – Features

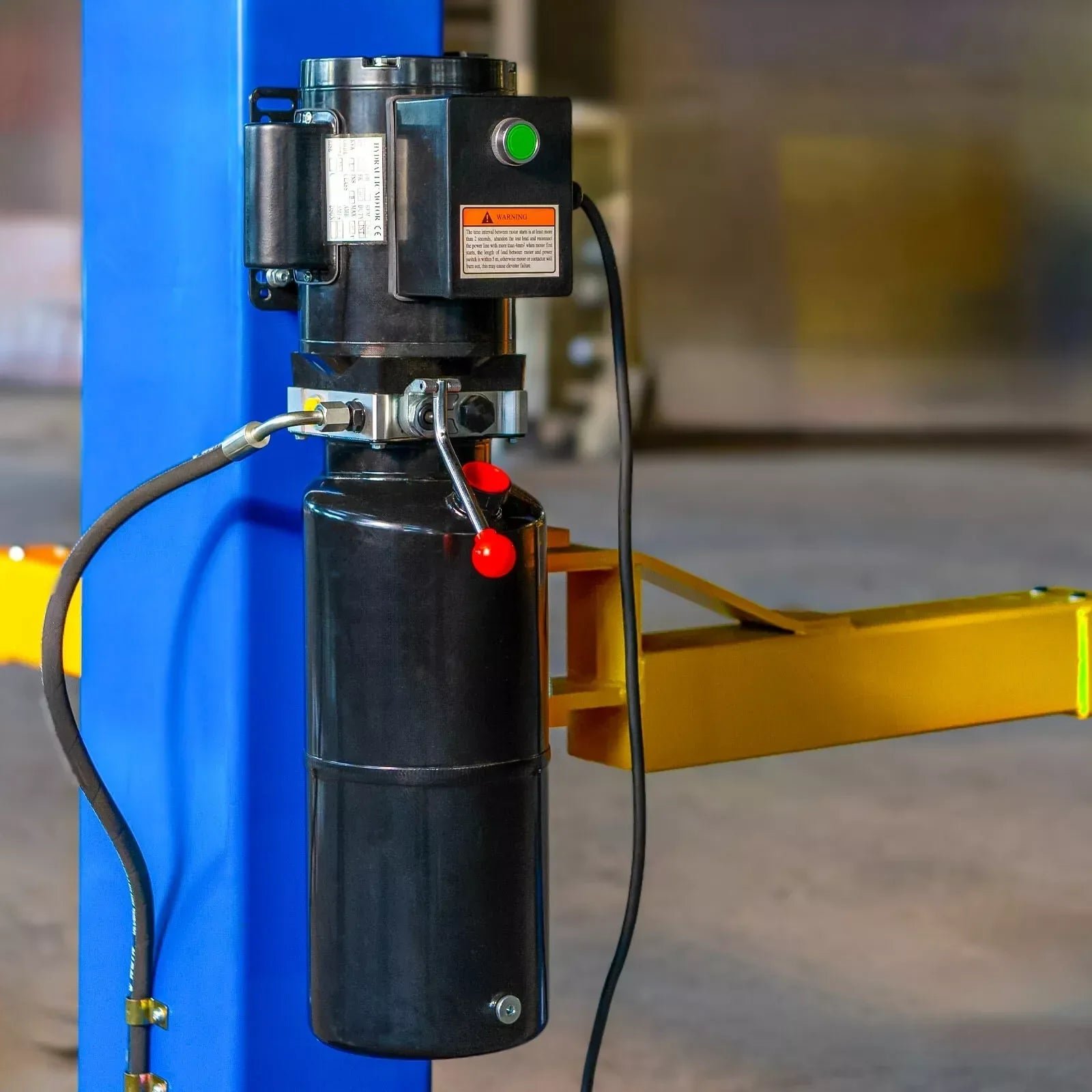

🔹 Motor: 220V, 60Hz, 1PH, 3HP
🔹 Adjustable Pads & Truck Adapters Included

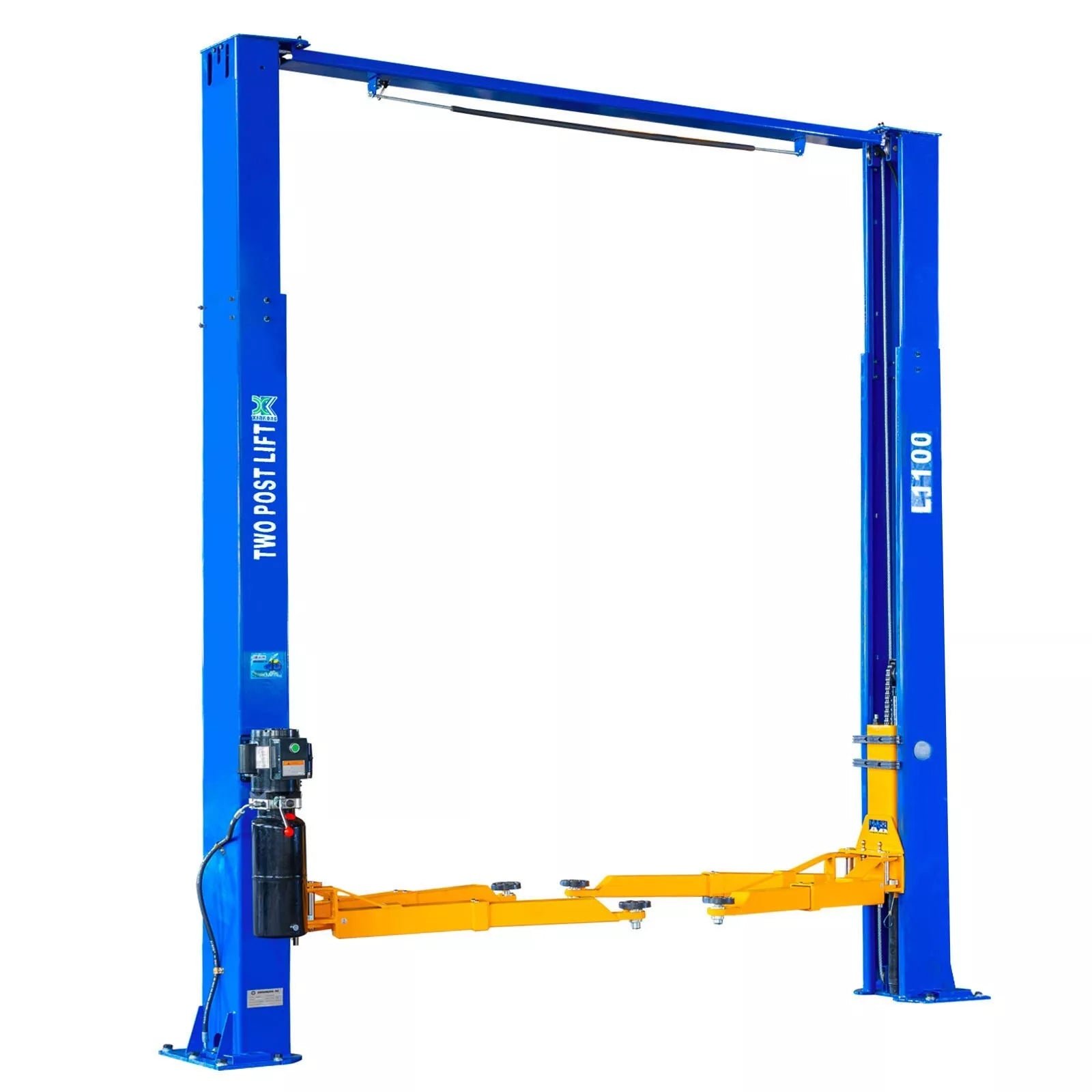

Symmetrical Arm Assembly:

✔ Straight front/rear 2-stage arms (Reach: 30.25″ – 49.2″)
✔ Equal-length front and rear arms
✔ Drop-in lifting pads and truck adapters included

Safety Features:

✔ Double-point safety lock release

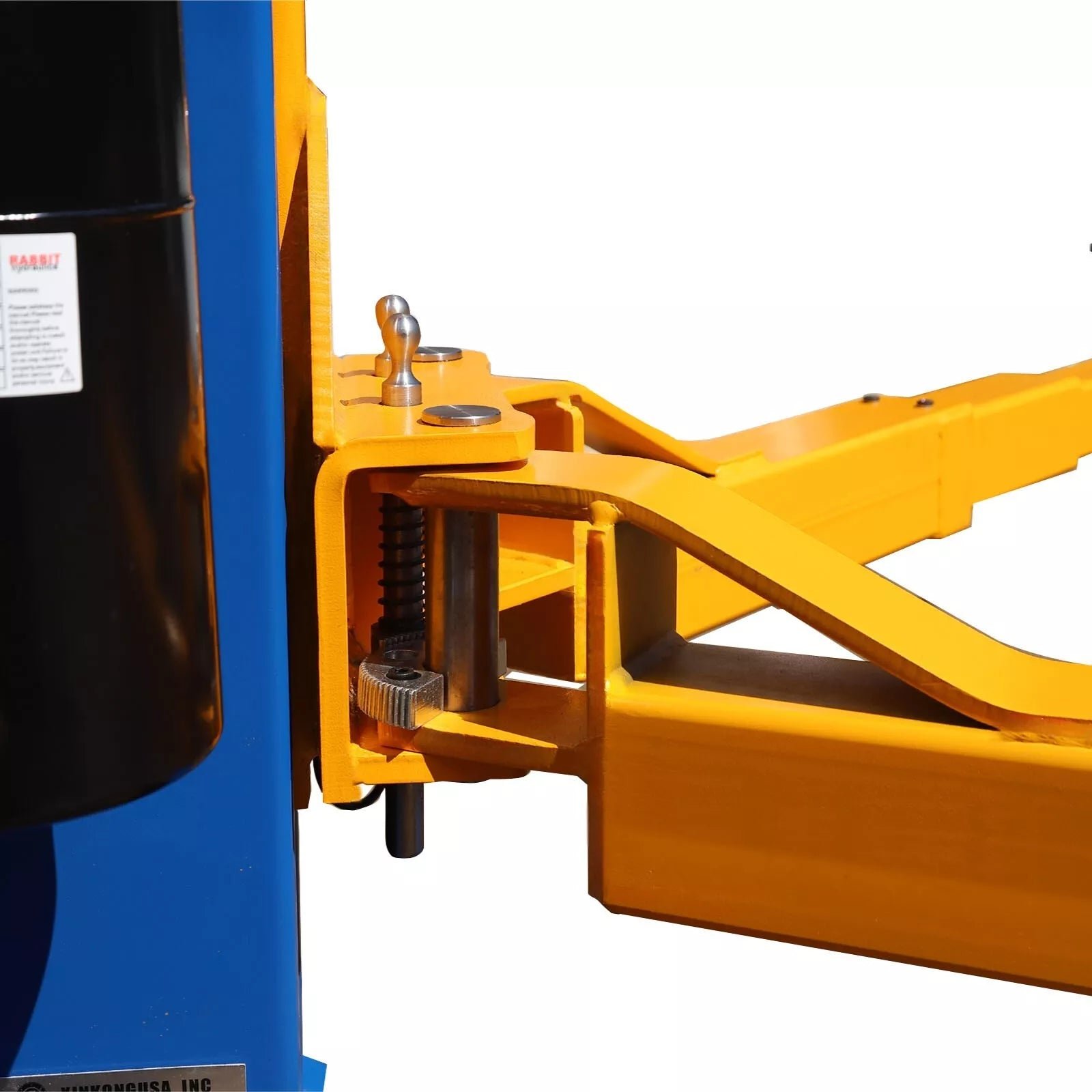

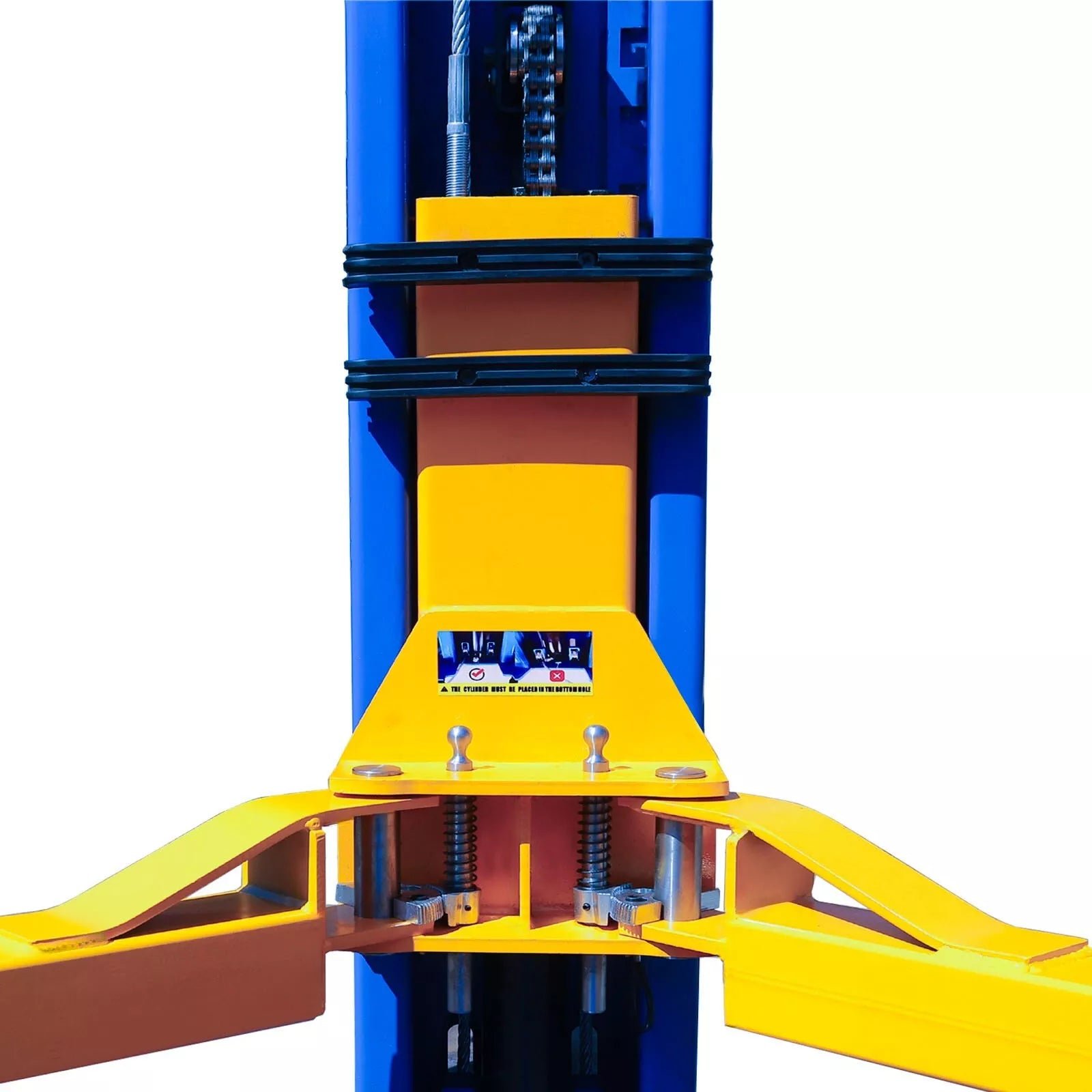

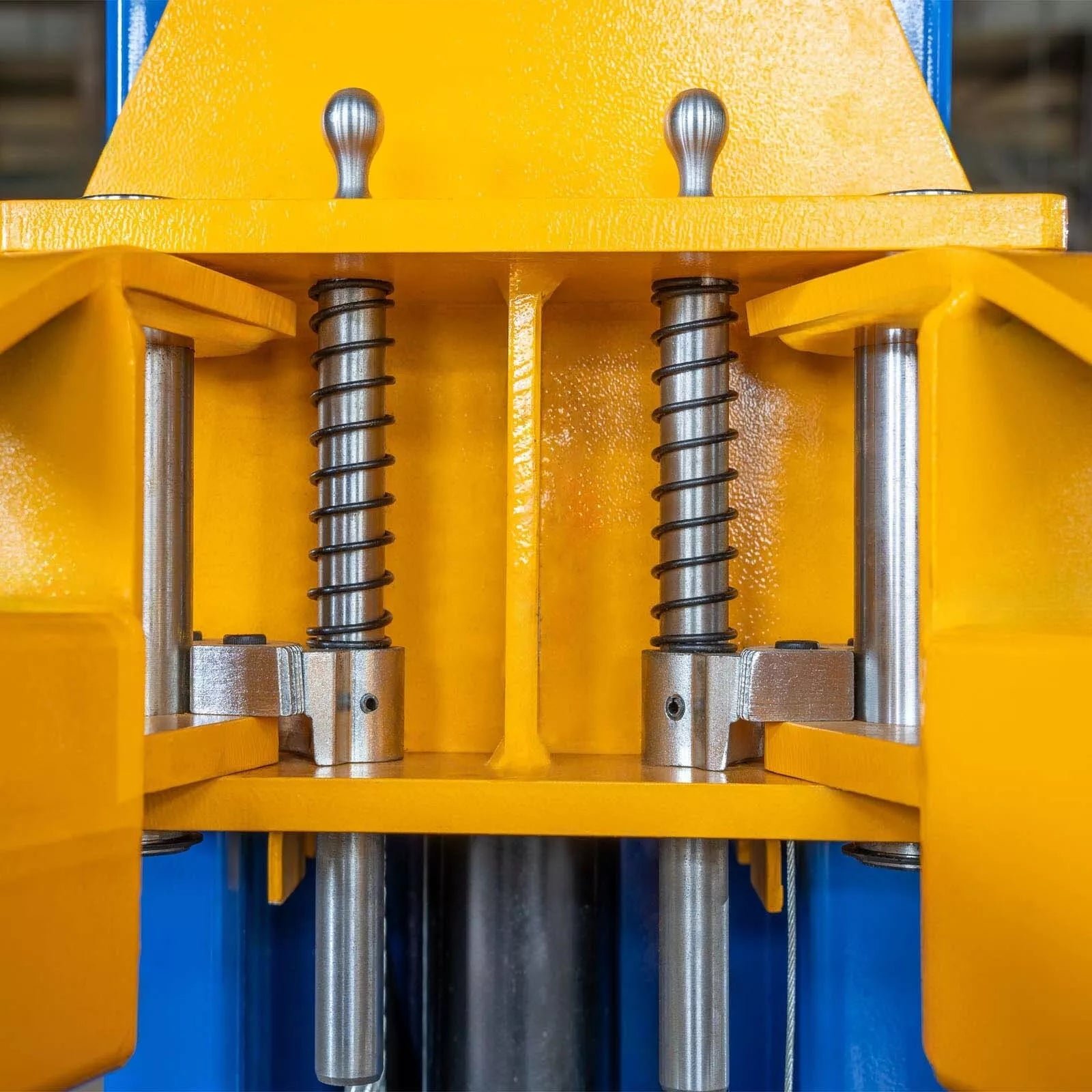

✔ Automatic arm lock restraints
✔ Built-in relief valve (Prevents overloading)

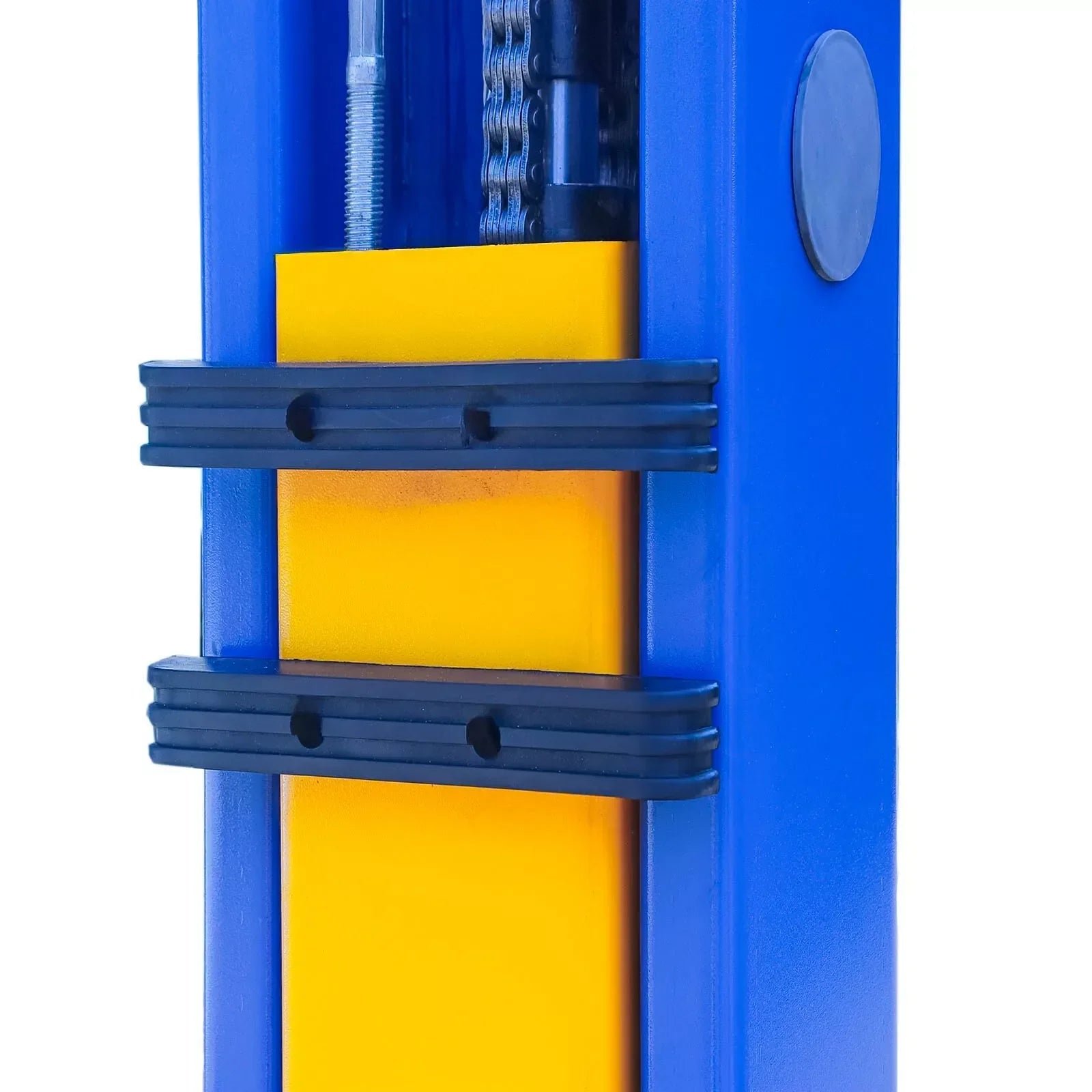

✔ Door guard protection rubber

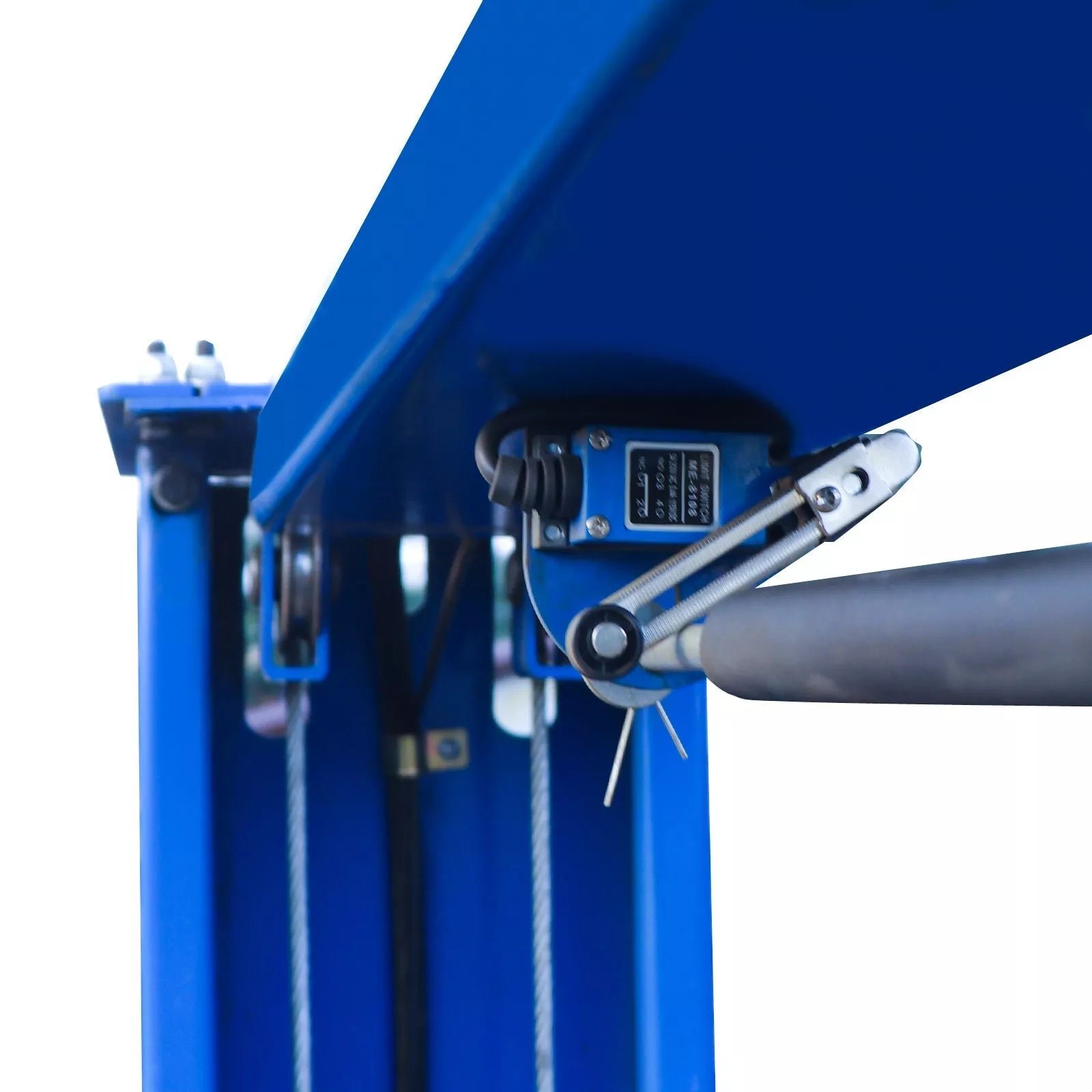

✔ Up-limit switch (Protects cylinder stroke)

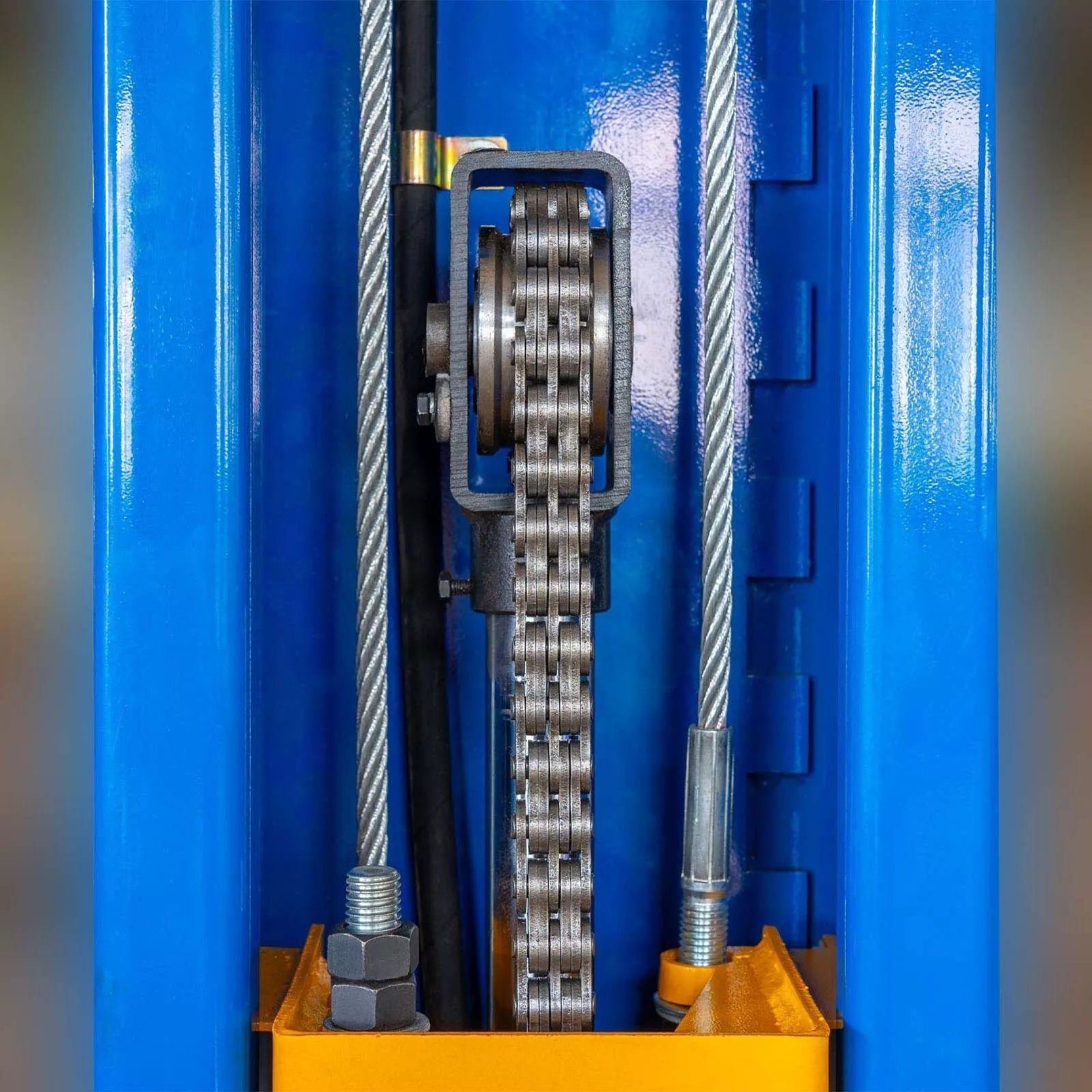

✔ Heavy-duty 5/16″ cable & 4.56″ pulley (Reduces stress & extends cable life)
✔ Stiffened base plate: 5/8″ thick
✔ Ultra-high molecular self-lubricating nylon slider (Ensures smooth movement)
✔ Anchor bolts & mounting hardware included

Control System:

✔ Lifting Operation: Press the “UP” button
✔ Manual Lowering: Press the lever
✔ Built-in relief valve (Prevents overloading)
✔ 1 Set of Truck Adapters Included

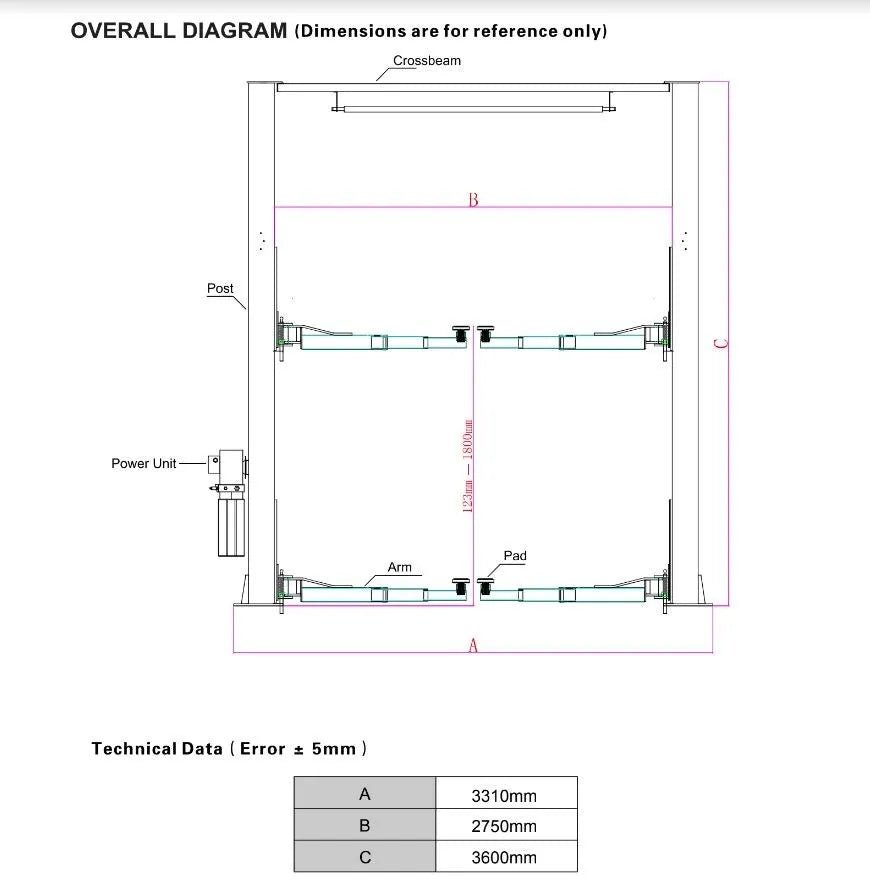

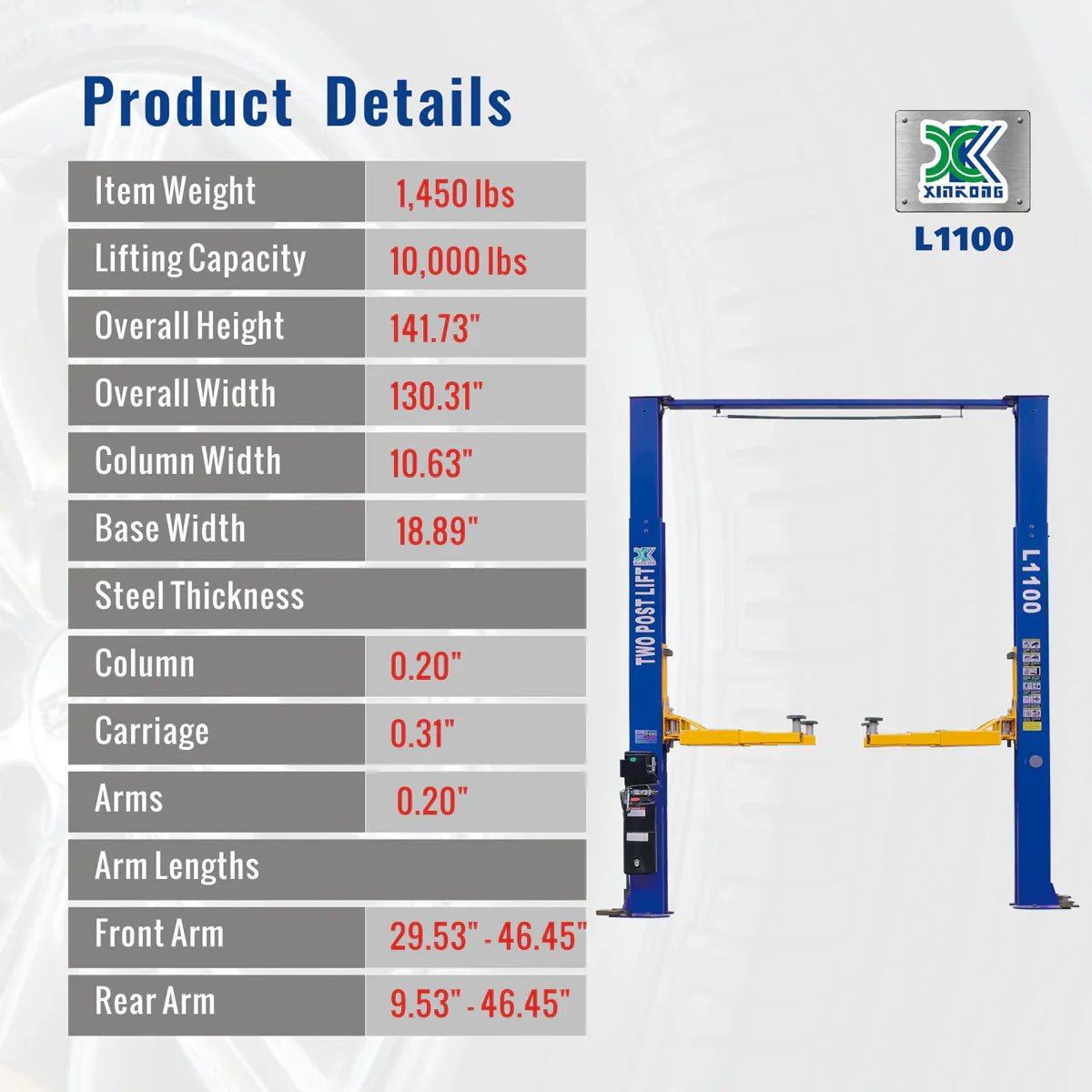

Specifications:

📌 Lifting Capacity: 10,000 lbs
📌 Overall Height: 141.7″
📌 Overall Width: 131″
📌 Column Width: 10.62″
📌 Base Width: 18.89″
📌 Steel Thickness (Column, Carriage, Arms): 3/16″ – 15/64″
📌 Front & Rear Arm Reach: 30.7″ – 48″
📌 Minimum Pad Height: 3-7/8″
📌 Maximum Lift Height: 70-3/4″
📌 Drive-Thru Clearance: 100″
📌 Full Rise Time: 45-60 seconds
📌 Shipping Weight: 1260 lbs

📍 Installation Requirements

Check These Before Installing Your Lift:

✔ Lift Location: Ensure proper space per architect’s plans. Requires 220V, 30A, single-phase, grounded power.
✔ Overhead Area: Ensure no heaters, supports, electrical lines, doors, or lights obstruct installation.
✔ Floor Area: Inspect for cracks or defective concrete.

Floor & Concrete Requirements

✔ Level concrete is recommended for proper installation.
✔ Minor slopes can be adjusted with shimming.
✔ New concrete must cure for at least 30 days.

🚫 DO NOT install on:
❌ Asphalt or non-concrete surfaces
❌ Expansion seams, cracked, or weak concrete
❌ A second/elevated floor (without consulting a building architect)
❌ Outdoors (unless properly weather-protected)

Concrete Specifications

✔ Minimum Requirement: 3,000 PSI reinforced concrete
✔ Recommended: 3,500 PSI, 6″ thick
