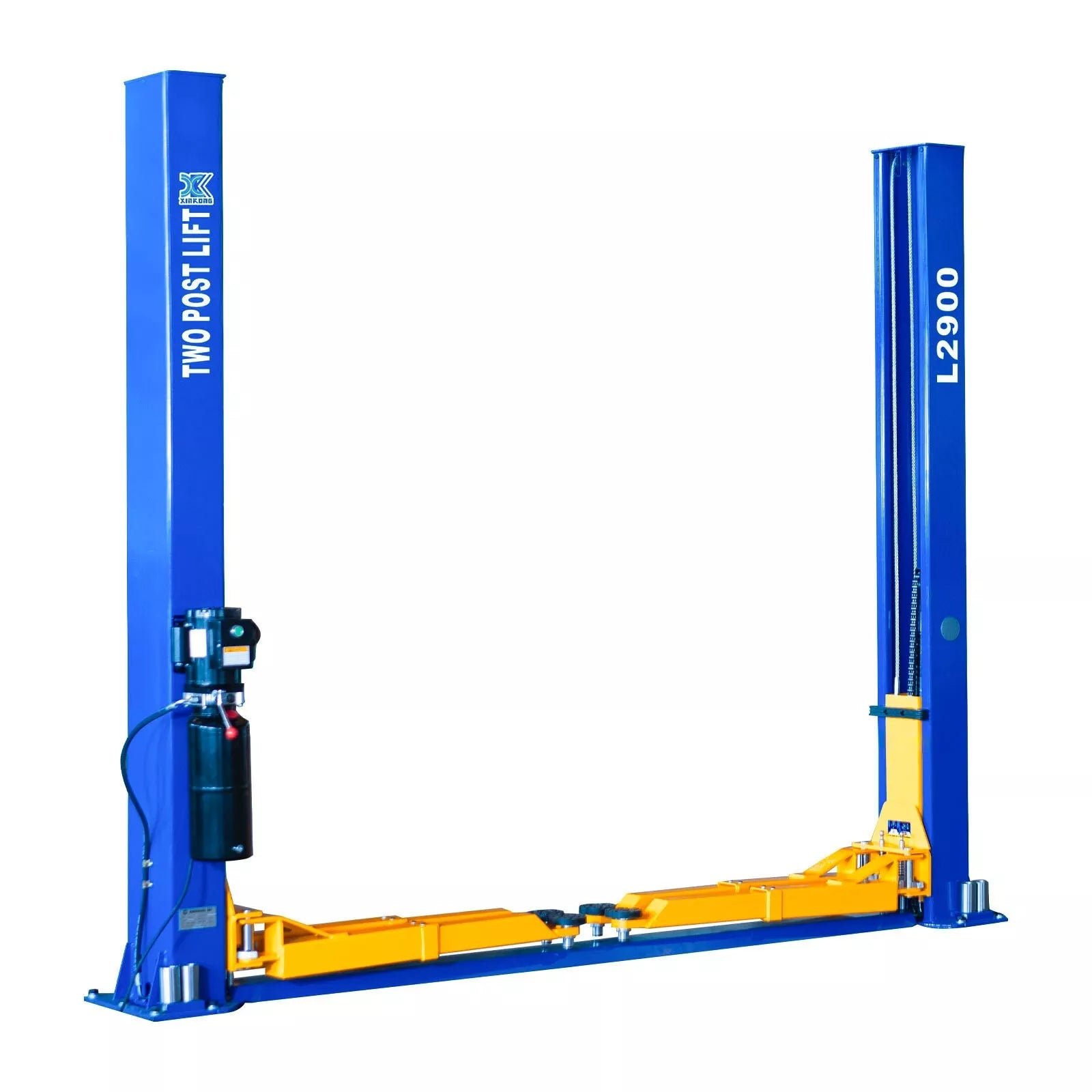

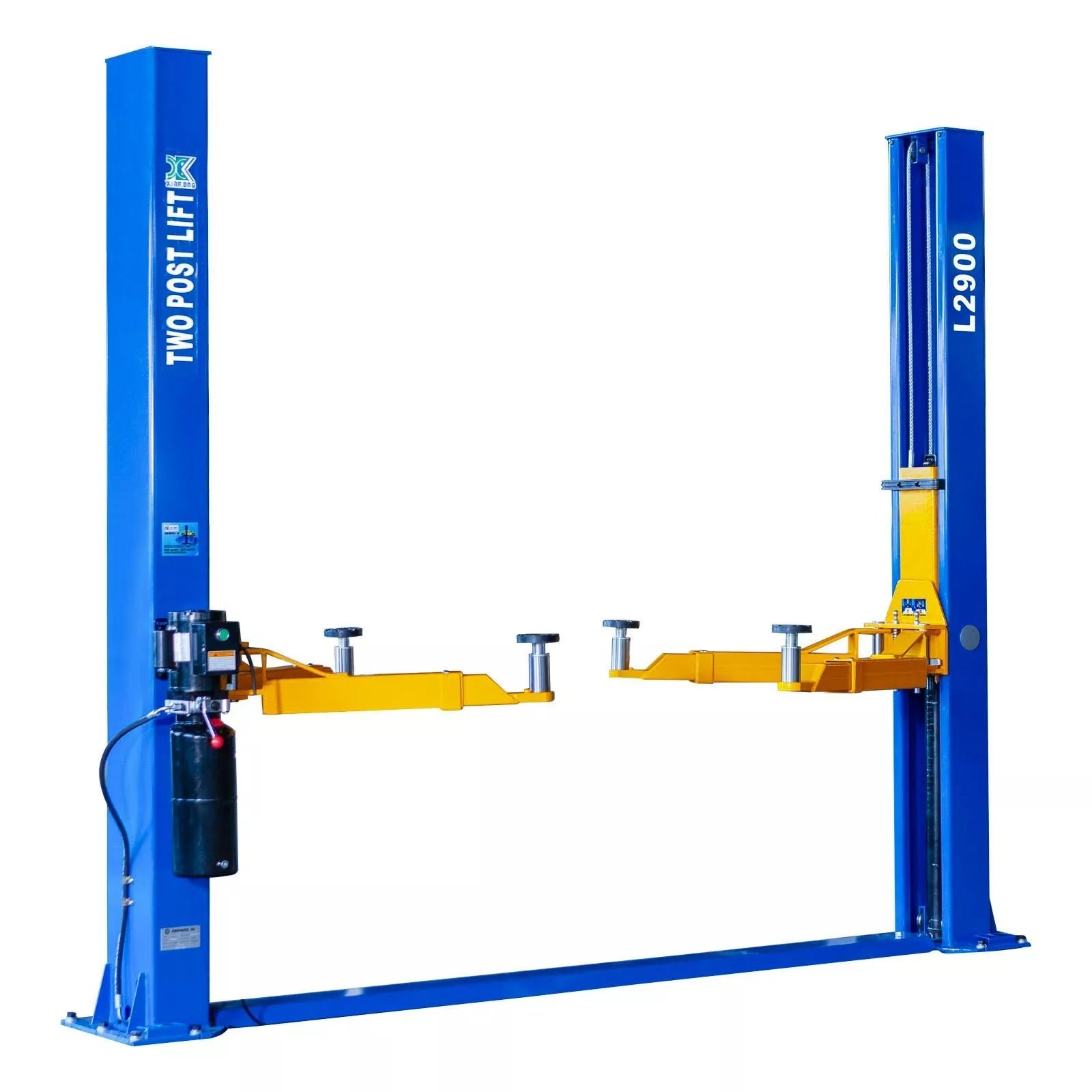

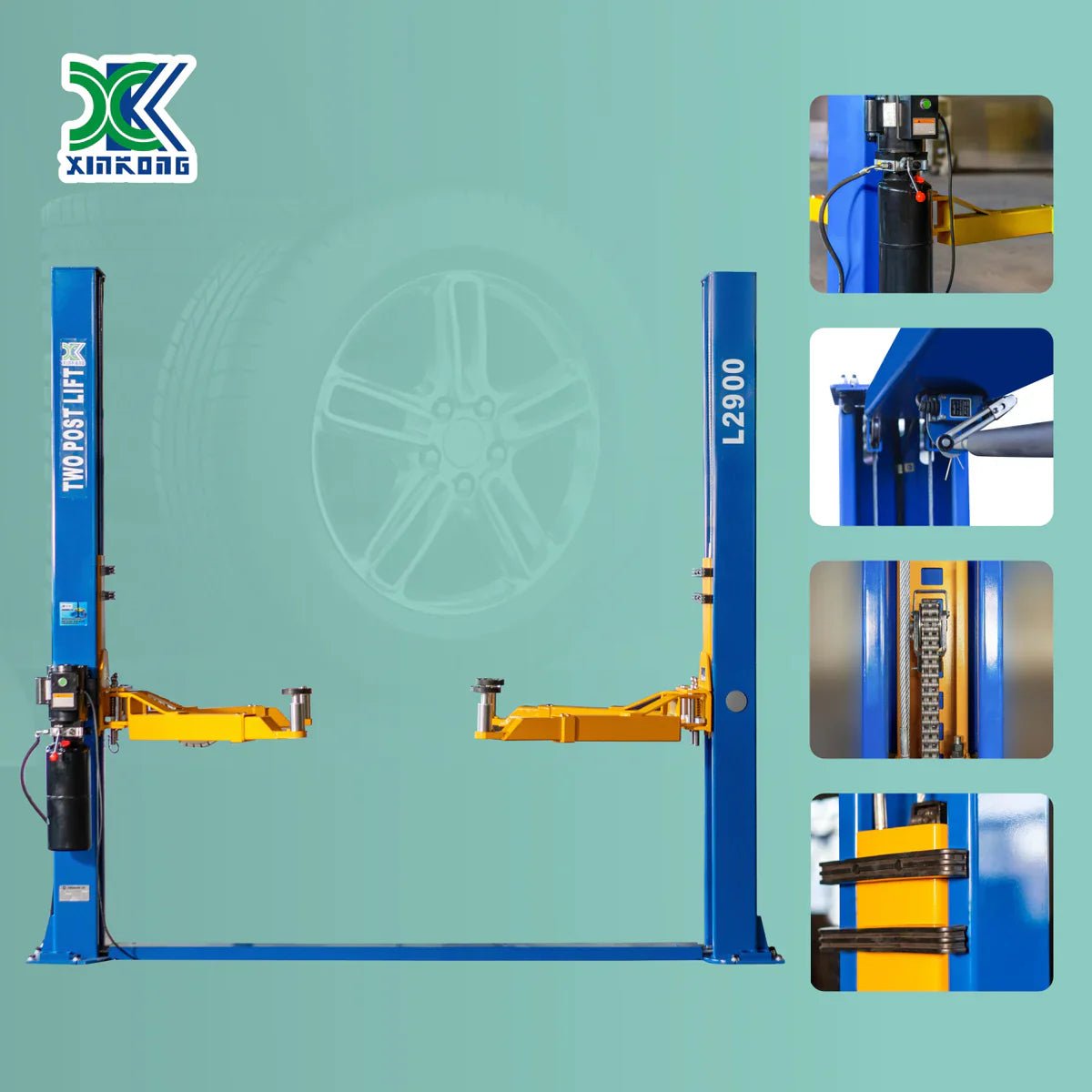

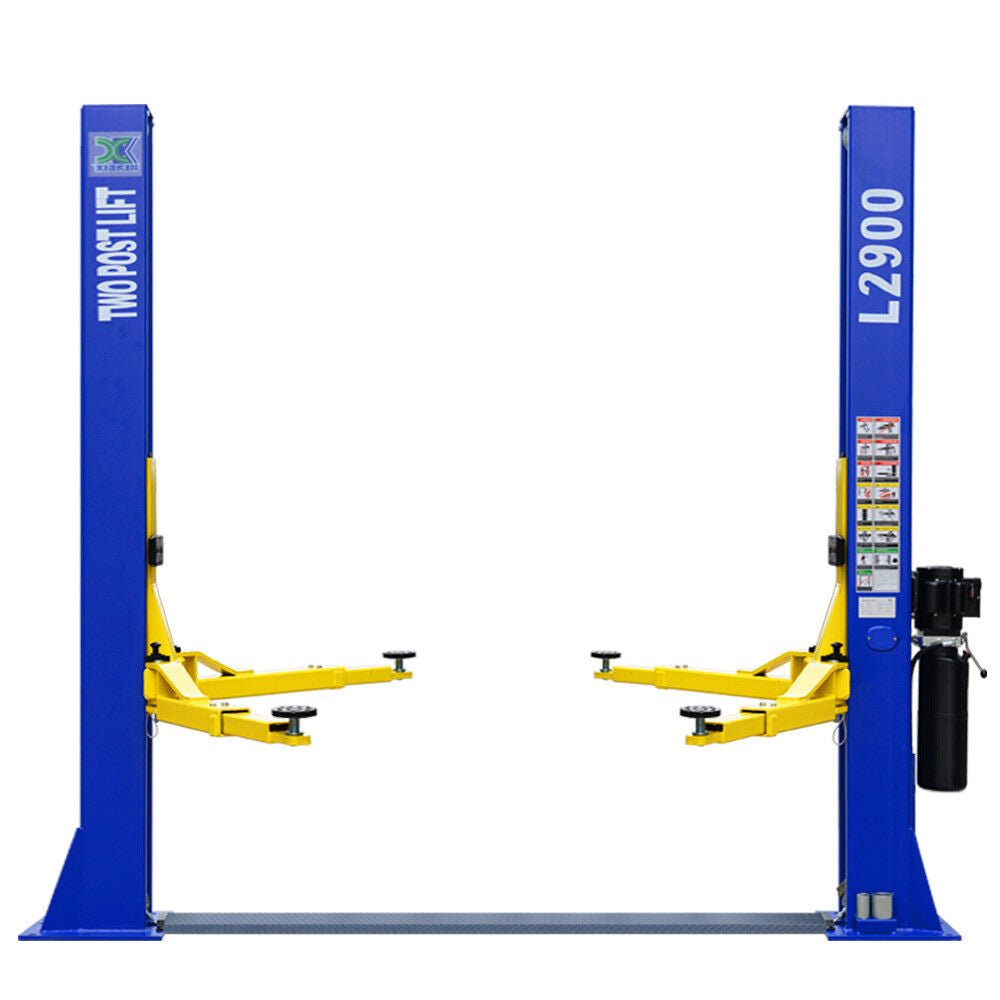

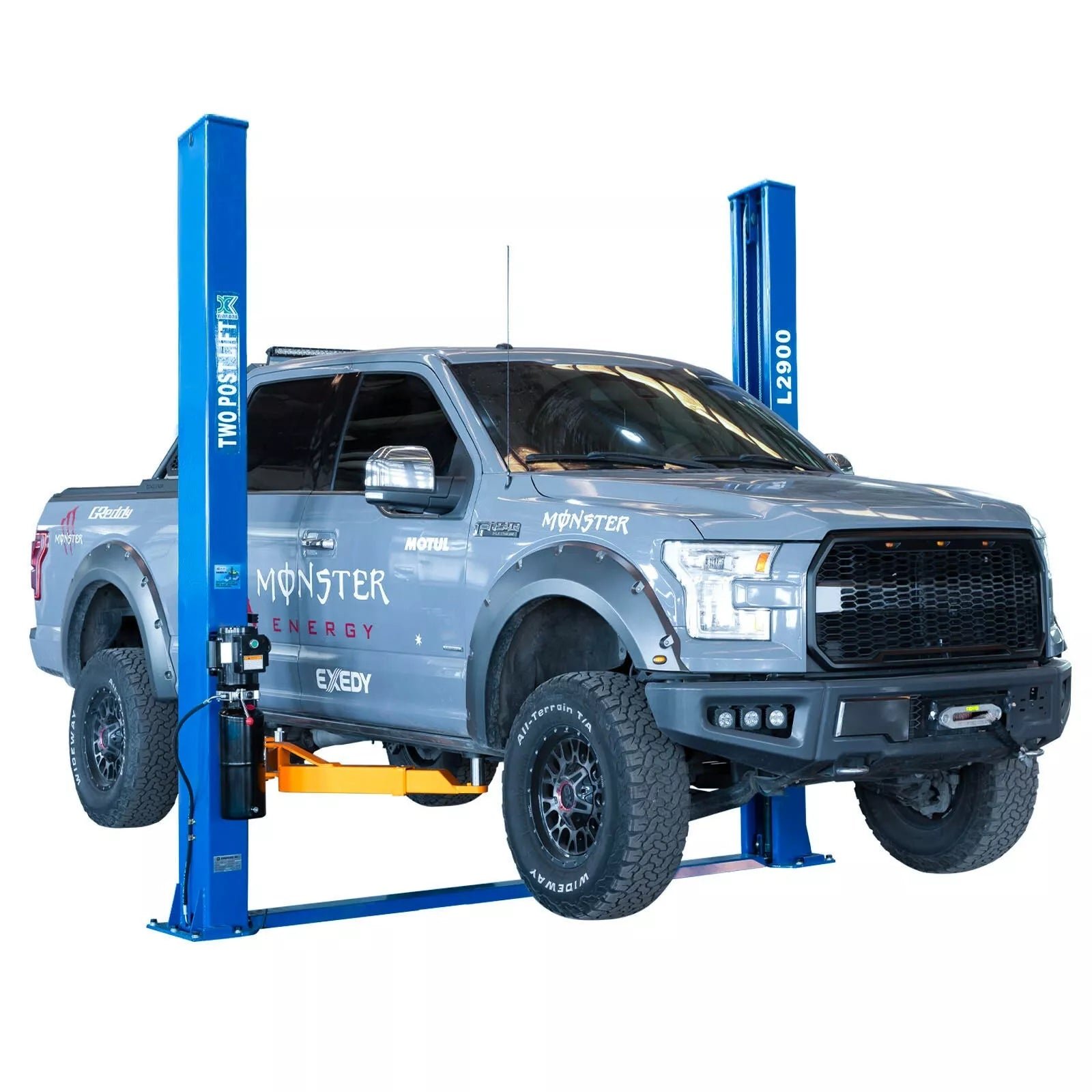

XK L2900 Two Post 9000LB Capacity Car Lift Auto Truck Hoist Industry Leading 220V or 110V

Features:

Safety Mechanism:

• Double Point Safety Lock Release

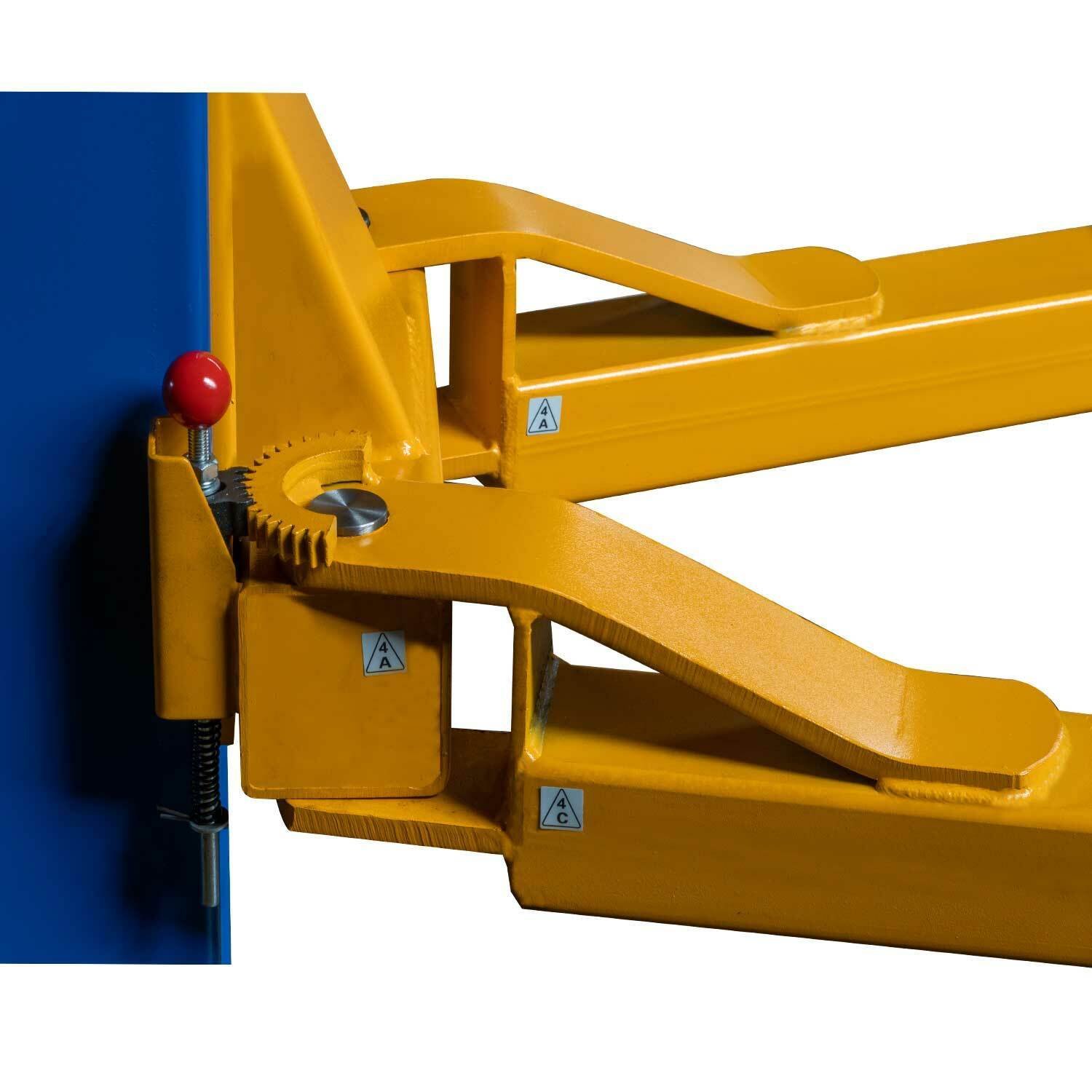

• automatic Arm Lock Restraints
• relief Valve Built In Power Pump To Prevent Overloading
• door Guards Protection Rubber
• up-limit Switch To Protect Cylinders Working Stroke Used In Safe Length Scope

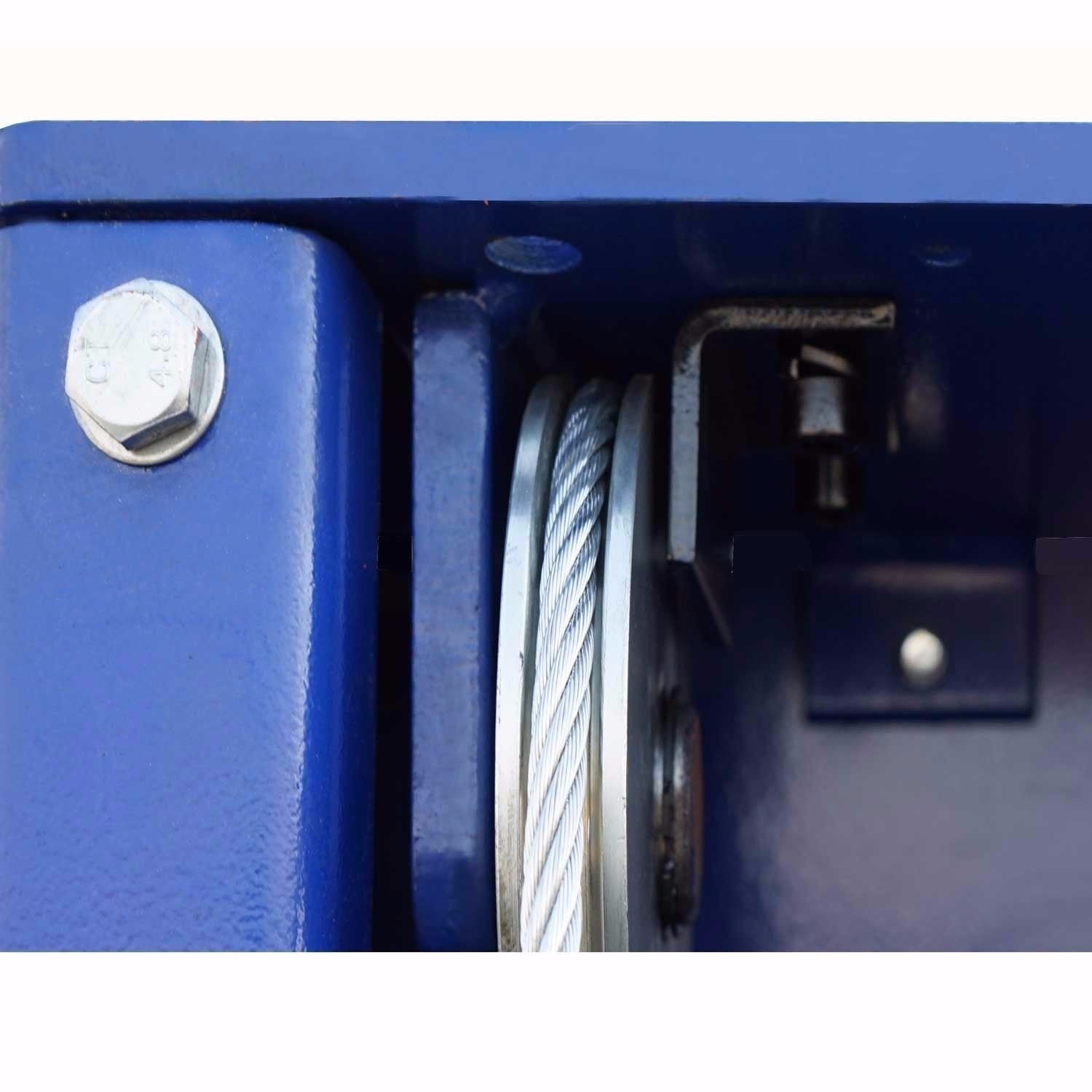

• heavy Duty 5/16″ Diameter Cable And 4.56″ Pulley Reduce High Stress On Synchronization Process And Increase Cable Life

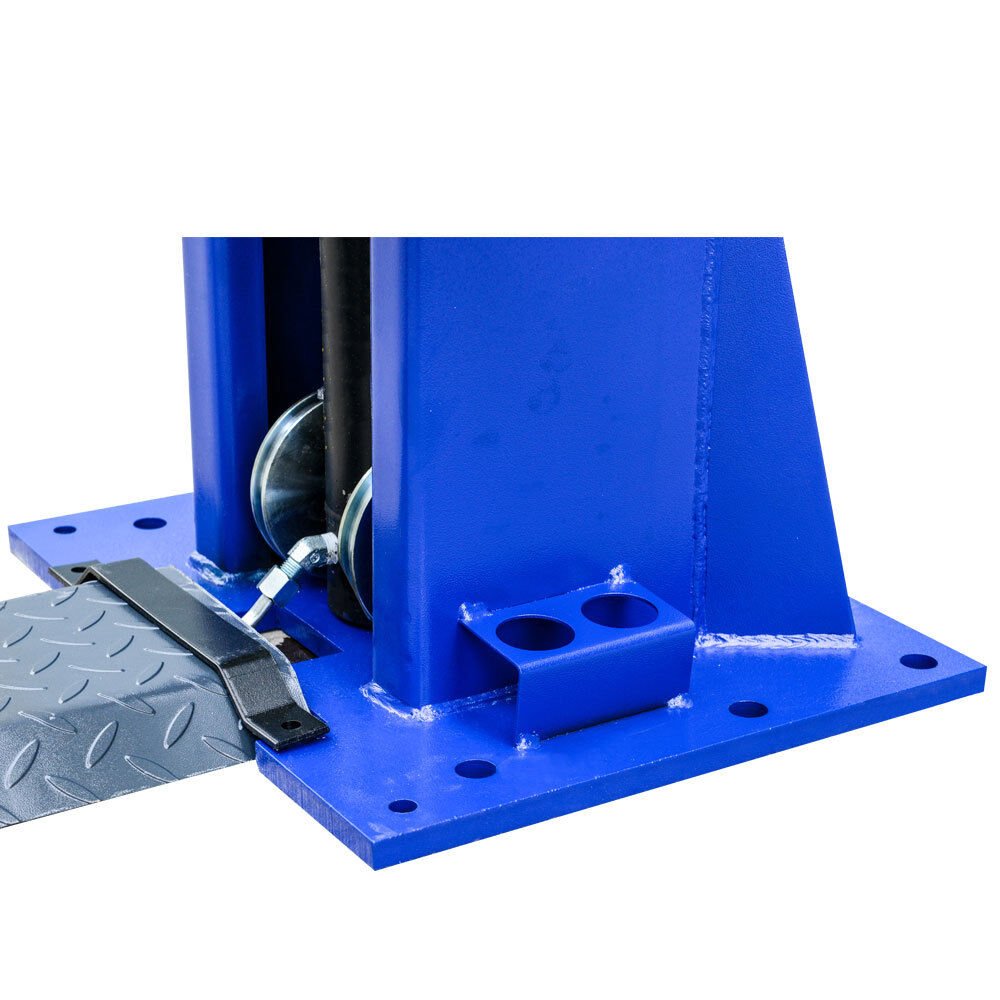

• stiffened Base Plate 15/32″ Thickness
• ultra High Molecular Self Lubricating Nylon Slider Ensures Carriage Smooth Moving Up And Down
• anchor Bolts/mounting Hardware Included

Control System:

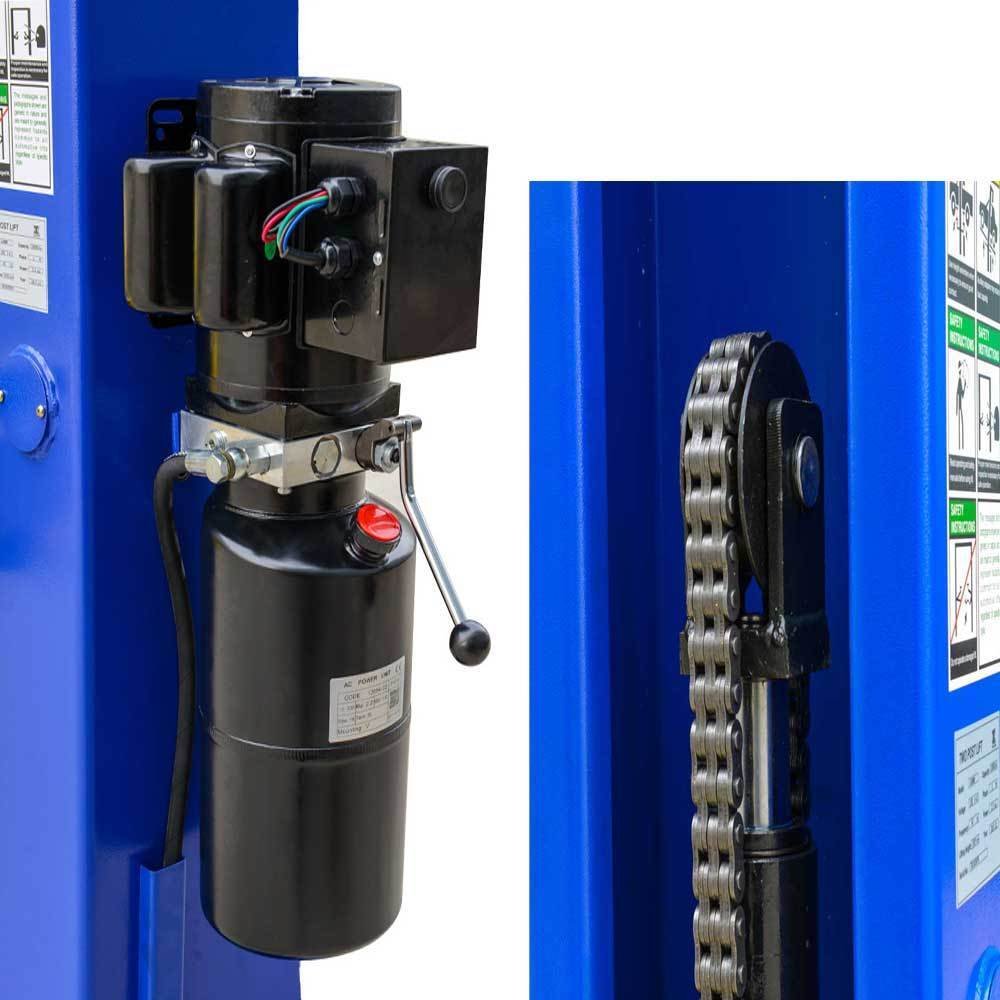

• Lifting Operation By Pressing “Up” Button On Motor
• manual Lowering Operation By Pressing Lever
• relief Valve Built In Power Pump To Prevent Overloading

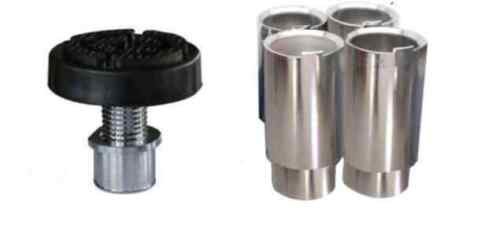

• 1 Sets Truck Adapters Included

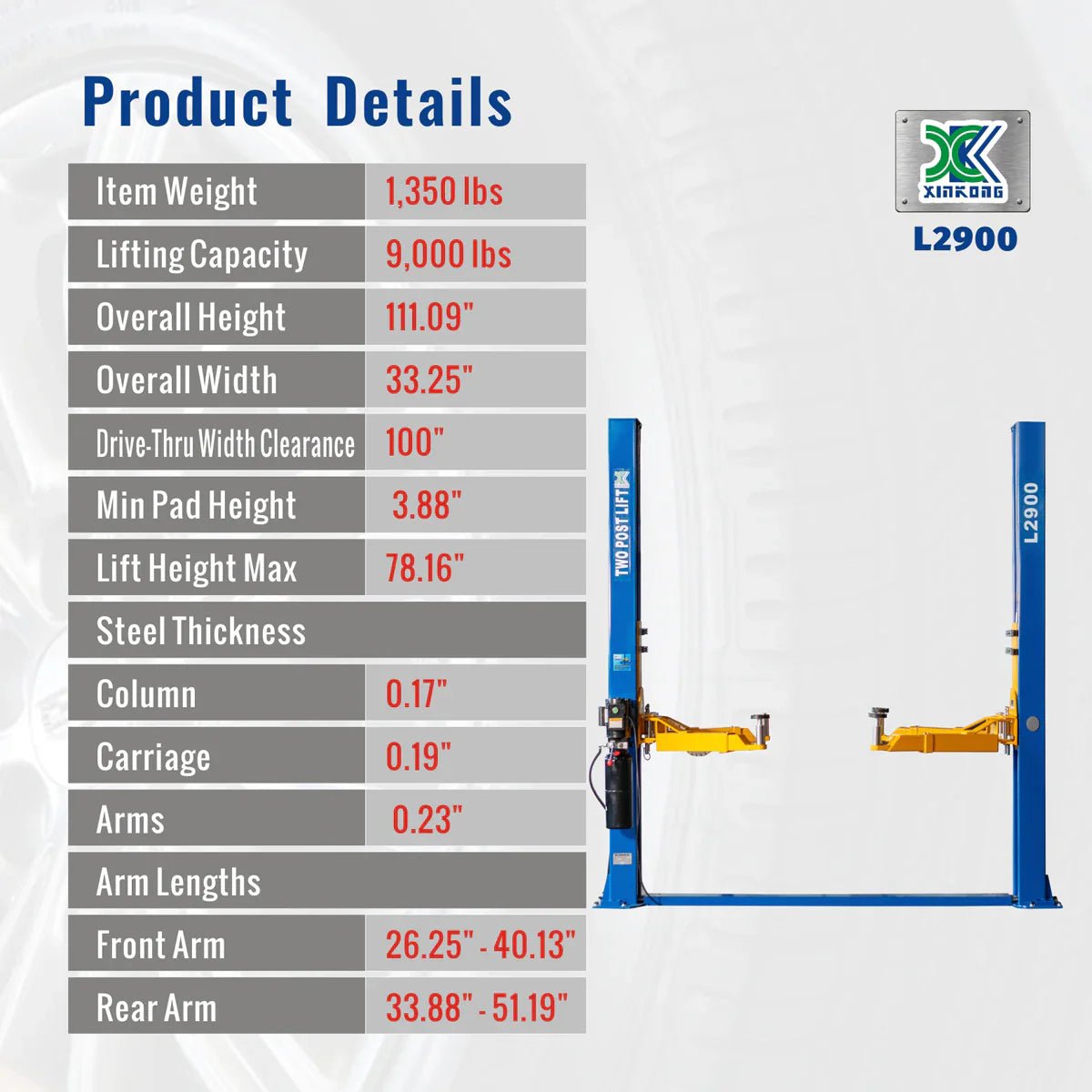

• lifting Capacity: 9,000 Lbs

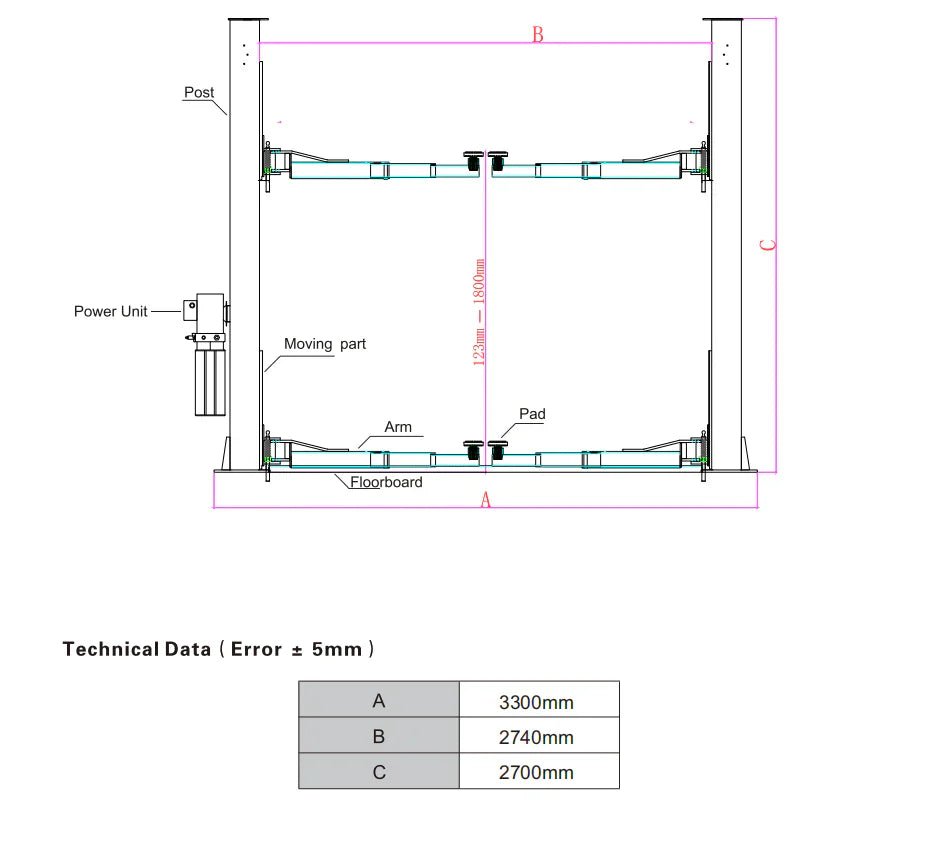

• the Overall Height 111-3/32″
• the Overall Width 133-1/4″
• column Width 10.59″

width Between Two Post 106.3″

• Base Width 18.89″
• column Thickness Of Steel 11/64″
• carriage Thickness Of Steel 3/16″
• arms Thickness Of Steel 15/64″

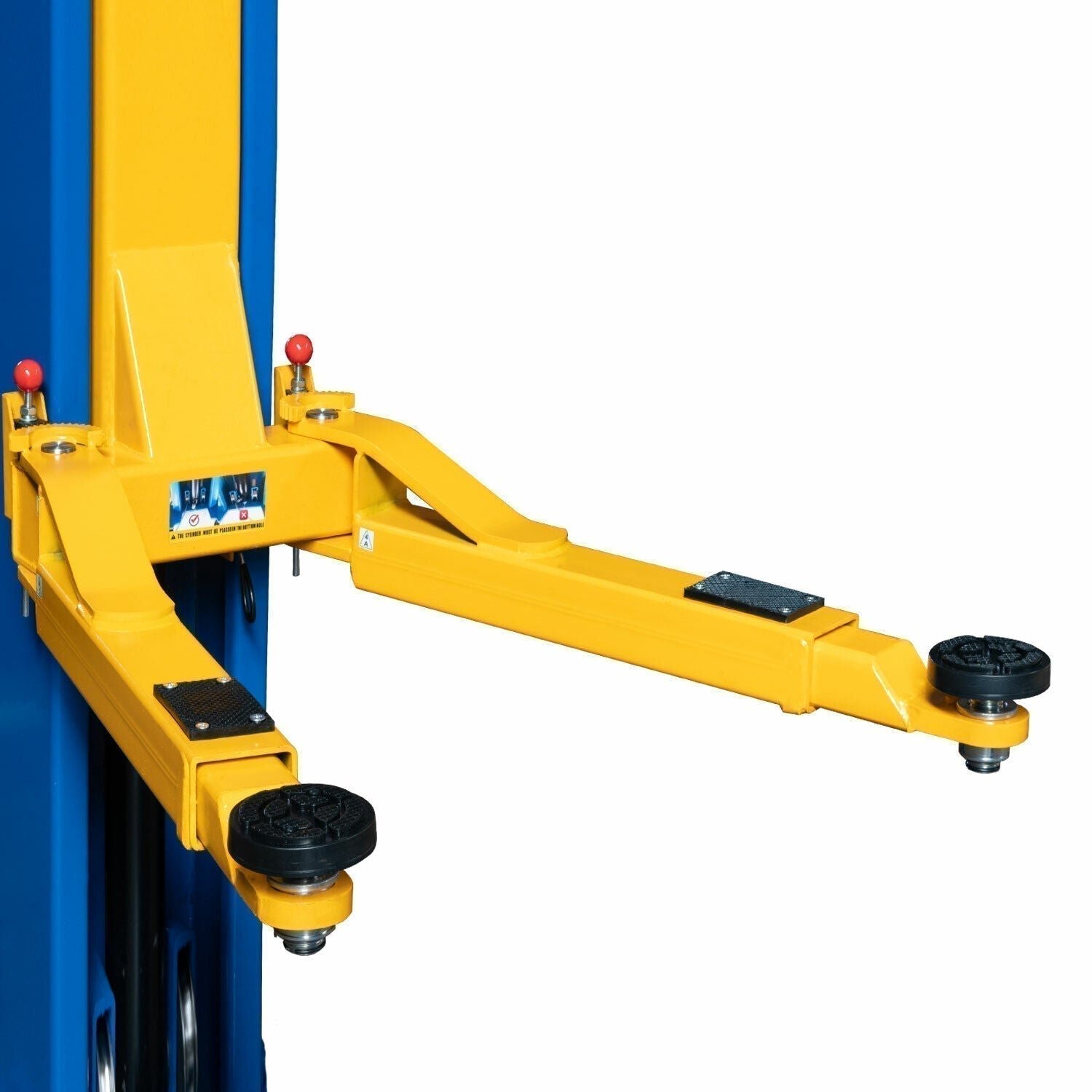

• front Arm 29.9″-47.2″
• rear Arm 29.9″-47.2″
• min Pad Height: 3-7/8″
• lift Height Max: 71.6″
• drive-thru Width Clearance: 99.2″
• Time To Full Rise: 20-60 Sec
• Shipping Weight: 1150 Lbs

Before Installing Your Auto Lift, Check The Following:

Lift Location: Always Use Architect’s Plans When Available. Check Layout Dimension Against Floor Plan Requirements Making Sure Adequate Space Is Available. Your Lift Requires A 220v Or 110v , 30amp, Single Phase, Grounded Electrical Source. There Should Be Room Enough To Operate The Lift In A Safe Manner And Without Restrictions.

Overhead Area: The Area Where The Lift Will Be Located Should Be Free Of Overhead Obstructions Such As Heaters, Building Supports, Electrical Lines, Doors, Lights, Etc.

Floor Area: Visually Inspect The Site Where The Lift Is To Be Installed And Check For Cracked Or Defective Concrete.

Floor Requirements:

A Level Floor Is Suggested For Proper Installation And Level Lifting. Small Differences In Floor Slopes May Be Compensated For By Proper Shimming. If A Floor Is Of Questionable Slope, Consider A Survey Of The Site And/or The Possibility Of Pouring A New Level Concrete Slab.

• New Concrete Must Be Adequately Cured For At Least 30 Days.
• Do Not Install Auto Lift On Any Asphalt Surface Or Any Surface Other Than Concrete.
• Do Not Install Auto Lift On Expansion Seams Or On Cracked Or Defective Concrete.
• Do Not Install Auto Lift On A Second/elevated Floor Without First Consulting Building Architect.
• Do Not Install Auto Lift Outdoors Unless Special Consideration Has Been Made To Protect The Power Unit From Inclement Weather Conditions.

Concrete Specifications:

• All Models Must Be Installed On 3,000 Psi Reinforced Concrete Only. Additional Concrete Requirements Will Vary By Lift.
• 8,500 Lbs – 10,000 Lbs Lifts: 4? Minimum Thickness
• 11,000 Lbs – 15,000 Lbs Lifts: 6? Minimum Thickness
