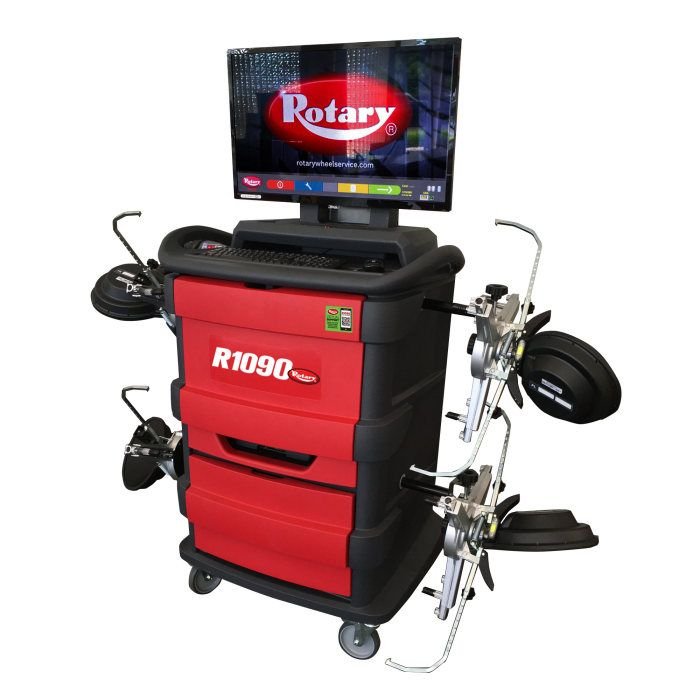

Rotary R1090 Pro 3D Alignment System
Original price was: $28,429.00.$11,371.00Current price is: $11,371.00.
Free shipping to the USA
Fast, reliable delivery with tracking.
Easy returns
Hassle-free return policy for peace of mind.
Secure payment
Encrypted checkout with trusted payment methods.
38
People watching this product now!
NOTICE! We are clearing our warehouse for relocation. Only a few items left. If the "Buy Now" button is visible, the product is still available.
About this item :
Less of a learning curve to run our software, less space required for the machine in any bay, less total cost involved to start doing alignments yourself. The R1090 Pro 3D is your next alignment system.
HIGH-PERFORMANCE SYSTEM WITH SOLID VISION TECHNOLOGY
Equipped with fixed cameras, tire grabbing clamps, and remote-controlled sensors.
• Automatic positioning of the cameras
• Automatic recognition of the targets
• ADAS ready
FAST AND EASY SETUP
with Console or Tablet Operated System – Includes Android Tablet as a REMOTE indicator
Easy to follow alignment process with updated graphics that feature a time saving On Rack Test Drive Program
• Animated instructions
• Easy to read results
• Adjustment Illustrations
• Live adjustments
• Email or print alignment report
Features

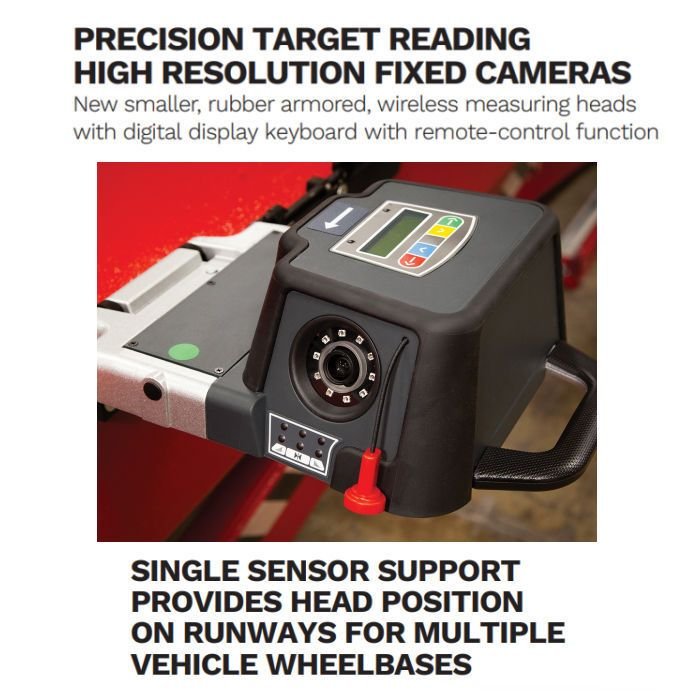

SINGLE SENSOR SUPPORT PROVIDES HEAD POSITION ON RUNWAYS FOR MULTIPLE VEHICLE WHEELBASES
Quick clamp to the lift, this
pivoting support avoids damage
with obstacles while lowering.

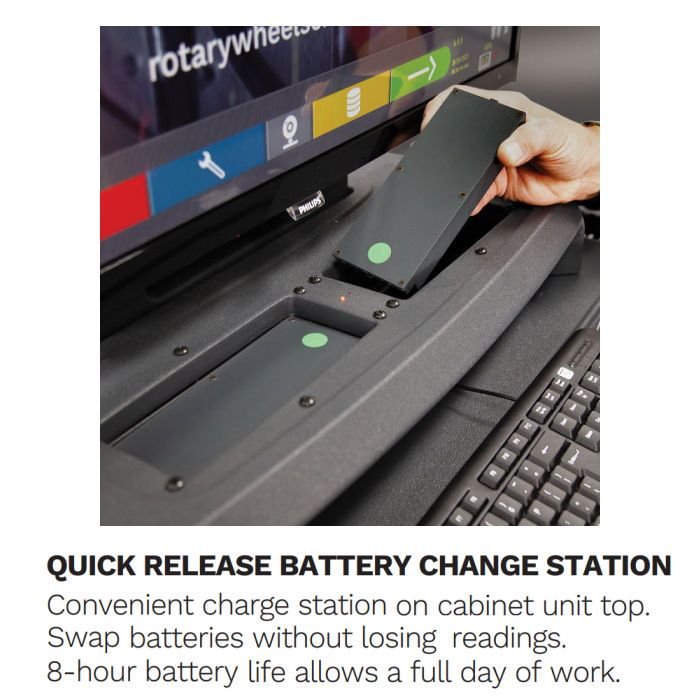

QUICK RELEASE BATTERY CHANGE STATION
Convenient charge station on cabinet unit top. Swap batteries without losing readings. 8-hour battery life allows a full day of work.

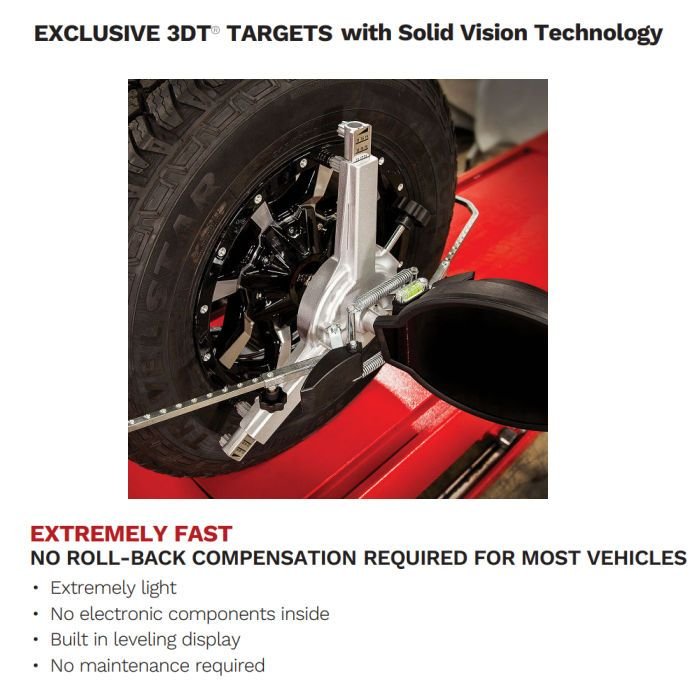

EXCLUSIVE 3DT® TARGETS with Solid Vision Technology EXTREMELY FAST
NO ROLL-BACK COMPENSATION
REQUIRED FOR MOST VEHICLES
• Extremely light
• No electronic components inside
• Built-in leveling display
• No maintenance required

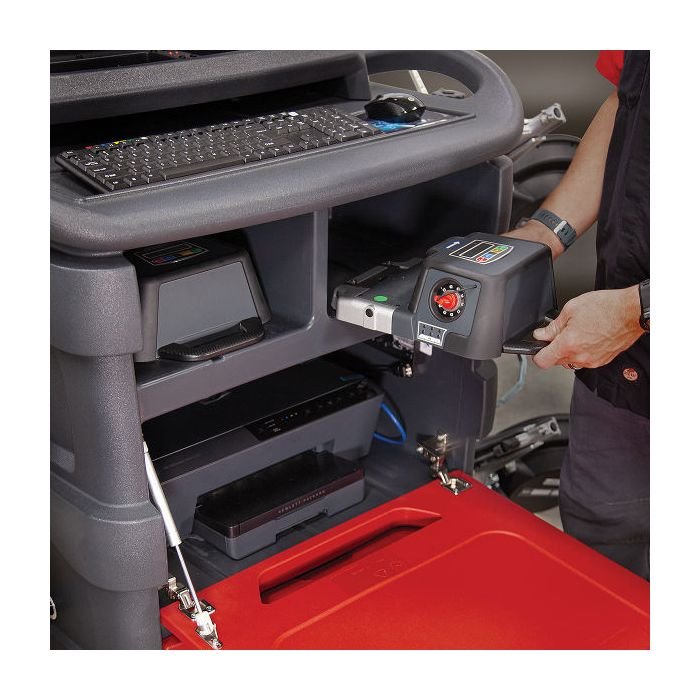

NEW PORTABLE CABINET WITH INCREASED STORAGE.
New portable cabinet with increased storage. Compact size for workshops with limited space.

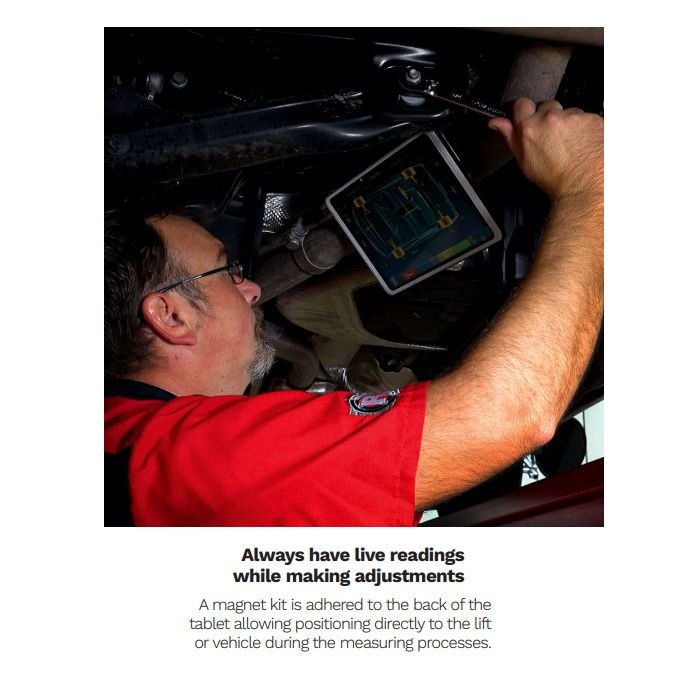

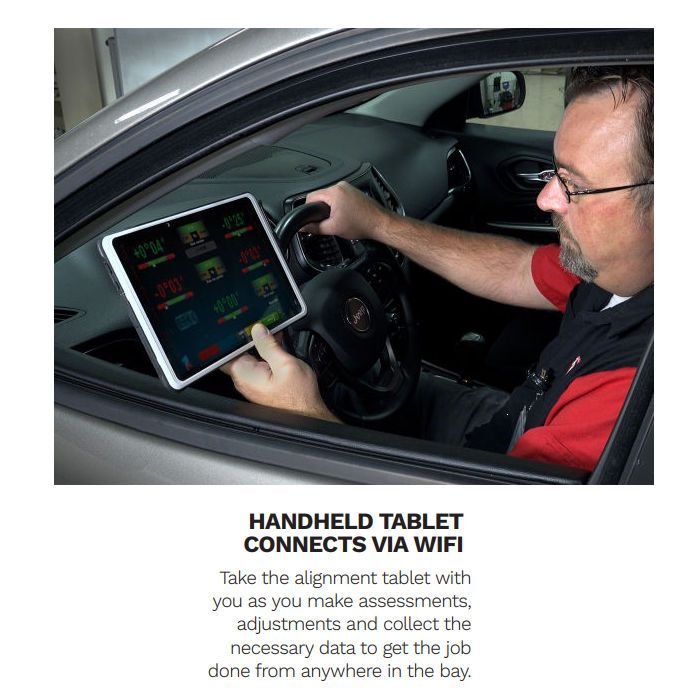

HANDHELD TABLET ALLOWS TECHS TO READ AND MAKE ADJUSTMENTS ANYWHERE IN THE BAY!
Take the alignment tablet with you as you make assessments, adjustments and collect the necessary data to get the job done from anywhere in the bay.

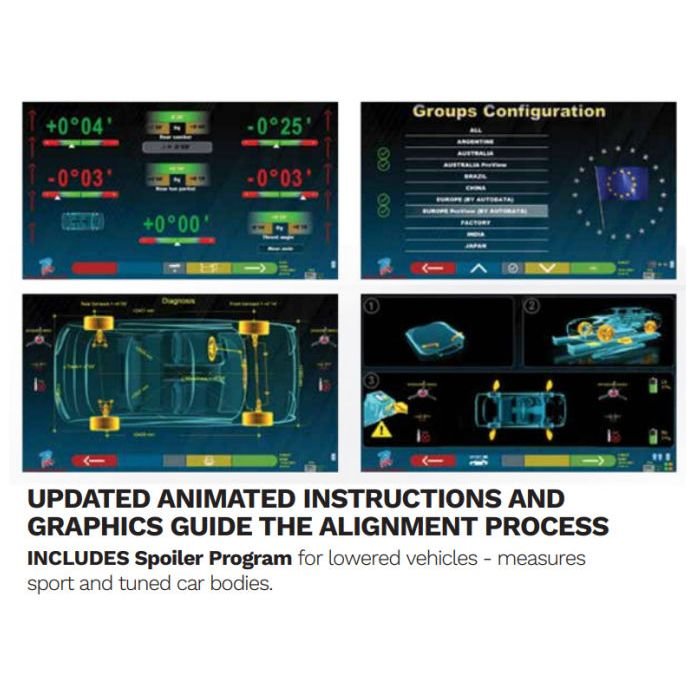

ENHANCED GRAPHIC INTERFACE
Updated animated instructions and graphics guide the alignment process. Includes “Spoiler Program” for lowered vehicles – measures sport and tunes car bodies.

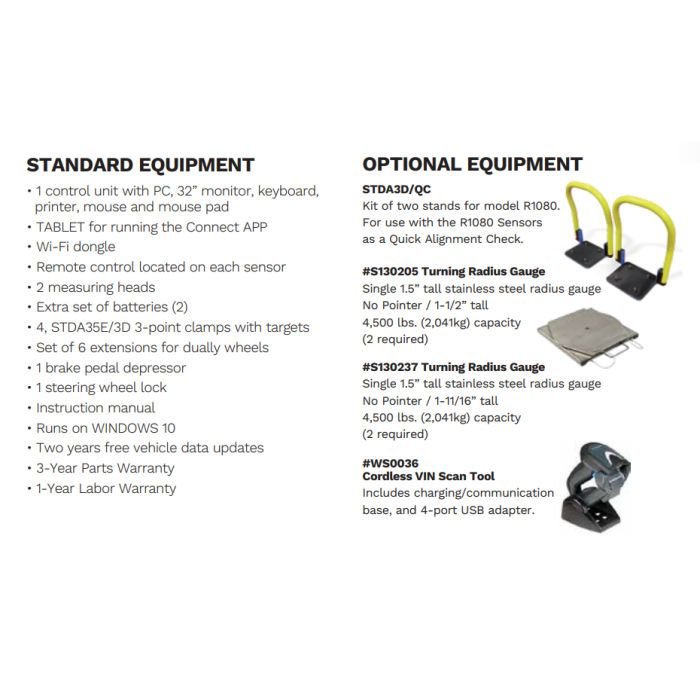

Standard Equipment
- 1 control unit with PC, 32″ monitor, keyboard, printer, mouse and mouse pad
- TABLET for running the Connect APP
- Wi-Fi dongle
- Remote control located on each sensor
- 2 measuring heads
- Extra set of batteries (2)

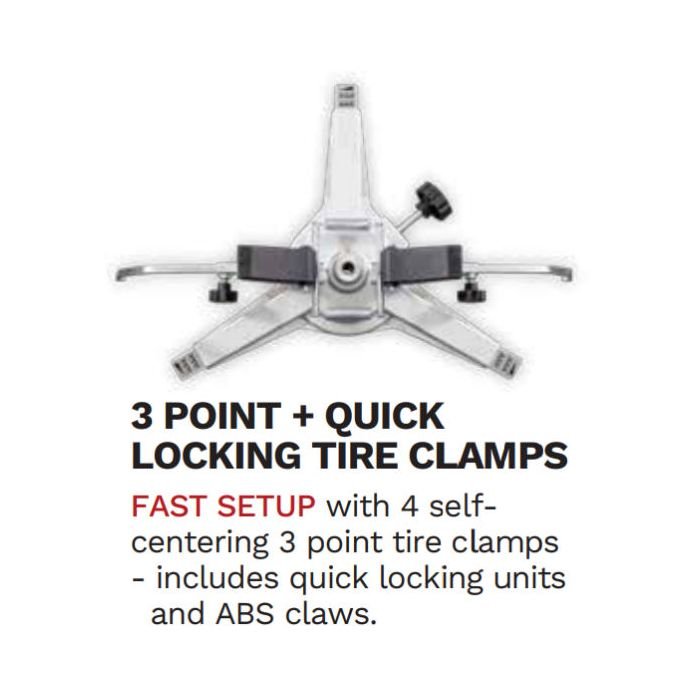

- 4, STDA35E/3D 3-point clamps with targets
- Set of 6 extensions for dually wheels
- 1 brake pedal depressor
- 1 steering wheel lock
- Instruction manual
- Runs on Windows 10
- Two years free vehicle data updates
- 3-Year Parts Warranty
- 1-Year Labor Warranty
Empty heading

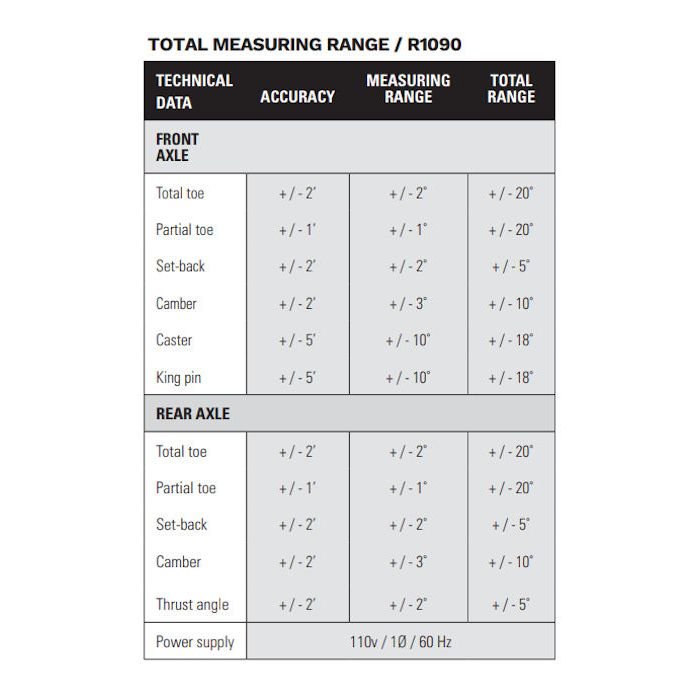

Specifications
|
R1090 Alignment System Technical Data |
Accuracy |
Measuring Range |
Total Measuring Range |
|
Front axle |
|||
|
Total toe |
+/- 2’ |
+/- 2° |
+/- 20° |
|
Partial toe |
+/- 1′ |
+/- 1° |
+/- 20′ |
|
Set-back |
+/- 2’ |
+/- 2° |
+/- 5° |
|
Camber |
+/- 2’ |
+/- 3° |
+/- 10° |
|
Caster |
+/- 5′ |
+/- 10° |
+/- 18° |
|
King-pin |
+/- 5′ |
+/- 10° |
+/- 18° |
|
Rear axle |
|||
|
Total toe |
+/- 2′ |
+/- 2° |
+/- 20° |
|
Partial toe |
+/- 1′ |
+/- 1° |
+/- 20° |
|
Set-back |
+/- 2′ |
+/- 2° |
+/- 5° |
|
Camber |
+/- 2′ |
+/- 3° |
+/- 10° |
|
Thrust angle |
+/- 2′ |
+/- 2° |
+/- 5° |
|
Power supply |
110v / 1Ø / 60 Hz |
Brand
Rotary
